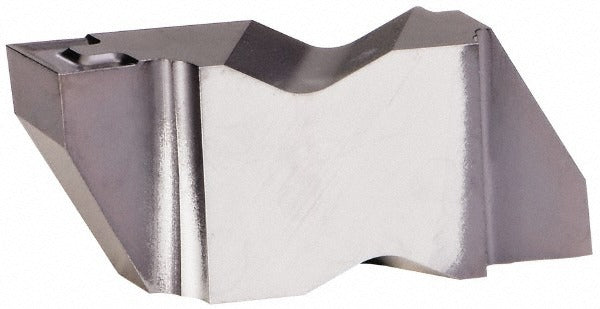

Kennametal 4176065 Grooving Insert KCU10 Solid Carbide

Product Description

The KENNAMETAL 4176065 is a solid carbide grooving insert designed for external grooving and turning operations on CNC lathes and turning centers. Built to the Top Notch series standard, this insert features a KCU10 grade substrate with an AlTiN PVD coating, providing excellent wear resistance and thermal stability at elevated cutting temperatures. The insert is configured for left-hand cutting with a 3.96 mm cutting width and a maximum depth of cut of 3.81 mm. It uses a clamp-style holding method and seats into compatible Top Notch toolholders. This insert is installed by machinists and CNC operators in production and job-shop environments.

This insert is suited for grooving, parting, and profiling operations in metric-measurement machining setups. The NG insert style and K chip breaker geometry make it appropriate for a range of workpiece materials where controlled chip formation is required. The included angle of 55 degrees and a corner radius of 0.19 mm (0.0075 inch) support moderate finishing and semi-finishing passes. It is rated for material grades C3 and C4, covering a range of cast iron and non-ferrous applications. The insert size designation is 3156 and it carries UNSPSC code 23242105.

Key Features

• KCU10 grade solid carbide substrate with AlTiN PVD coating for extended tool life
• Left-hand cutting orientation for compatible Top Notch series toolholders
• 3.96 mm cutting width with a maximum depth of cut range of 3.00 to 4.00 mm
• K chip breaker geometry for controlled chip evacuation during grooving
• Corner radius of 0.19 mm for semi-finishing and profiling passes
• Clamp-style insert holding method for positive, repeatable seating

Compatibility

Designed for use with Top Notch series clamp-style toolholders that accept the NG3156 insert size. The MSC/Manufacturer cross-reference number is NG3156R/LK.

Installation Notes

Installation is performed by a machinist or CNC operator with the machine fully powered down and the spindle locked before insert replacement. Use the appropriate torque wrench and clamp hardware specified by the toolholder manufacturer to seat the insert securely without over-clamping. Inspect the insert pocket and clamp for wear or debris before seating a new insert. Follow applicable shop safety procedures and machine guard protocols during any tooling changeover.
