Kennametal 4176019 Threading Insert Acme 10 Tpi Carbide Altin

Product Description

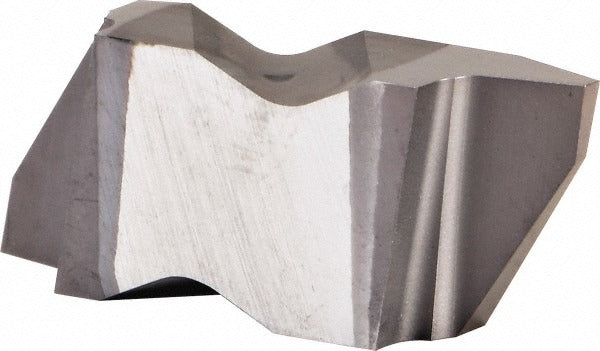

The KENNAMETAL 4176019 is a carbide threading insert designed for cutting Acme thread forms at 10 threads per inch (TPI). It carries a PVD-applied aluminum titanium nitride (AlTiN) finish that improves wear resistance and thermal stability during threading operations. The insert belongs to Kennametal's Top Notch series and is configured for right-hand, internal and external thread cutting. With an included angle of 29 degrees and a corner radius of 0.005 inches, this insert is geometry-specific to Acme thread profiles. It is installed and used by machinists and CNC lathe operators in production or job-shop environments.

This insert is suited for threading applications that require Acme thread profiles on both internal and external workpieces. The KCU10 grade carbide substrate combined with the AlTiN PVD coating makes it effective across a range of ferrous and non-ferrous materials where Acme threads are specified, such as lead screws, power transmission components, and linear actuation hardware. It is sold individually with a minimum order quantity of 5 units.

Key Features

• Acme thread form with a 29-degree included angle for accurate Acme profile geometry
• 10 TPI internal pitch for standard Acme thread sizing
• PVD AlTiN finish for improved wear resistance and high-temperature performance
• KCU10 carbide grade substrate for reliable edge integrity in threading operations
• Right-hand cutting configuration for standard thread-direction compatibility
• Configured for both internal and external threading applications

Compatibility

Designed as a Top Notch series OEM-style replacement threading insert compatible with Top Notch series threading toolholders that accept size 3 inserts with the NA style.

Installation Notes

Threading inserts are installed by machinists and toolroom technicians using appropriate Top Notch series toolholders. Power down and lock out the machine spindle before seating or replacing the insert. Ensure the insert is fully seated and the clamping screw is tightened to the toolholder manufacturer's specification before resuming cutting operations. Inspect the insert seating pocket for chips or debris prior to installation to avoid improper seating and premature edge failure.
