Kennametal 4175860 Grooving Insert NG2125 KCU10 Carbide Altin

Product Description

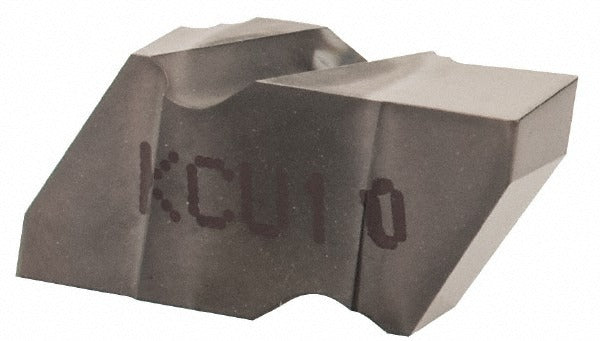

The KENNAMETAL 4175860 is a solid carbide grooving insert in the Top Notch series, designed for external grooving and parting operations on CNC lathes and turning centers. It carries a KCU10 manufacturer grade with a PVD-applied AlTiN coating, delivering high wear resistance and thermal stability across a range of workpiece materials rated C3 and C4. The insert is left-hand orientation with a 3.18 mm cutting width, a maximum depth of cut of 2.79 mm, and a corner radius of 0.19 mm. Machinists and CNC operators install this insert as a direct-fit component into compatible Top Notch clamp-style toolholders.

This insert is suited for precision grooving applications on lathes in metalworking environments, including production shops and job shops running turning operations on ferrous and non-ferrous materials. The NG style insert size 2125, combined with the AlTiN PVD coating, makes it appropriate for moderate to high cutting speeds where heat buildup and abrasive wear are primary concerns. It is installed using a clamp-style insert holding method standard to the Top Notch toolholder system. The 55-degree included angle and full-radius-free geometry support controlled chip formation in narrow groove profiles.

Key Features

• Solid carbide substrate with PVD-applied AlTiN coating for elevated wear resistance
• 3.18 mm cutting width with a maximum depth of cut of 2.79 mm
• Corner radius of 0.19 mm for controlled groove geometry
• Left-hand insert orientation for compatible toolholder configurations
• Clamp-style holding method compatible with Top Notch series toolholders
• 55-degree included angle with non-full-radius geometry for precise groove profiles

Compatibility

Designed for use with Top Notch series clamp-style toolholders accepting NG-style inserts. The MSC and manufacturer cross-reference number for this insert is NG2125R/L.

Installation Notes
