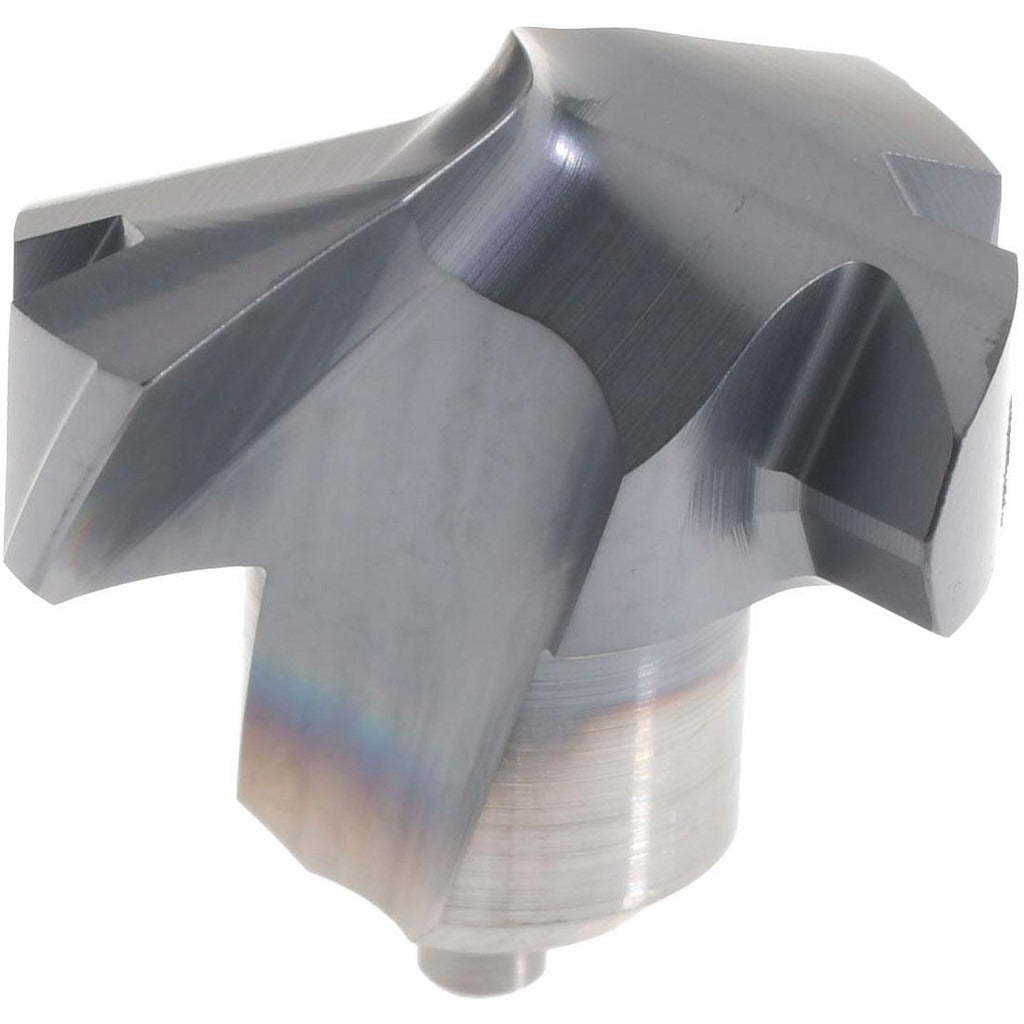

Kennametal 4158967 Replaceable Drill Tip 0.5311 in KCP15

Product Description

The KENNAMETAL 4158967 is a replaceable drill tip designed for high-performance drilling applications in metal cutting operations. Part of the KenTIP series, this solid carbide tip features a 0.5311-inch (13.49 mm) cutting diameter and an HP insert geometry with a 140-degree included angle. The AlTiN coating is applied via a PVD process, providing heat resistance and extended tool life in demanding machining environments. This tip is intended for use with compatible KenTIP modular drill bodies and is installed by machinists and tooling technicians in production or job-shop settings.

This replaceable tip suits applications where consistent hole quality and tool longevity are priorities. The KCP15 grade solid carbide construction with AlTiN coating performs well in ferrous and non-ferrous machining, including general-purpose metal cutting at moderate to high cutting speeds. The seat size P designation ensures proper seating in the corresponding drill body. It is commonly used in CNC machining centers and drill press operations where modular tooling systems reduce changeover time.

Key Features

• Solid carbide construction for rigidity and wear resistance
• AlTiN coating applied via PVD process for thermal protection and extended tool life
• 0.5311-inch (13.49 mm) cutting diameter with HP insert geometry
• 140-degree included angle for controlled entry and chip formation
• KCP15 manufacturer grade suited for a broad range of metal cutting applications
• Insert seat size P for precise, repeatable tip seating in KenTIP drill bodies

Compatibility

Designed for use with KenTIP series modular drill bodies requiring a seat size P replaceable tip with a 0.5311-inch cutting diameter and KTIP05312 style designation.

Installation Notes

Installation of replaceable drill tips should be performed by a qualified machinist or tooling technician. The mating drill body seat must be clean and free of chips or debris before seating the tip to ensure full contact and accurate runout. Follow the tool manufacturer torque guidelines for the specific drill body; do not overtighten or use improvised tools on the tip interface. Inspect the seat and tip for wear or damage at each changeover.
