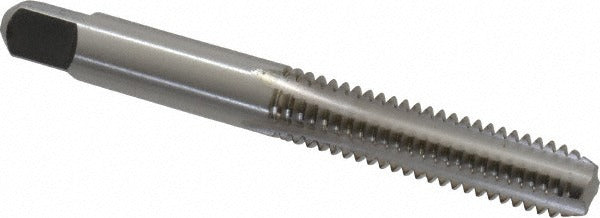

Kennametal 4131334 Hand Tap 5/16-18 Unc Bottoming Hss

Product Description

The KENNAMETAL 4131334 is a 5/16-18 UNC straight-flute hand tap ground to a bottoming chamfer for threading holes that require full threads to the bottom of a blind bore. Manufactured from high-speed steel with a bright uncoated finish, this tap is suited for general-purpose hand tapping in machine shops, maintenance environments, and production toolrooms. The 4-flute straight-flute geometry provides balanced cutting action and chip clearance in through and blind holes. Right-hand thread direction, a 2B class of fit, and an H5 thread limit make it a standard choice for UNC fastener assembly work where dimensional accuracy is required.

This tap is intended for use in cast iron and non-ferrous metals, making it appropriate for applications in general metalworking, equipment repair, and light manufacturing. The bottoming chamfer — typically 1 to 2 threads of lead — is used as the final tap in a tapping sequence after a taper or plug tap has started the thread, allowing full thread form to be produced close to the bottom of a blind hole. It is sold individually and is part of the KENNAMETAL Series 5305 and 5303 tap families.

Key Features

• Bottoming chamfer for threading to the base of blind holes
• 4-flute straight-flute design for balanced cutting in cast iron and non-ferrous metals
• High-speed steel construction for durability in production and maintenance tapping
• Bright uncoated finish suitable for use with standard cutting fluids
• 2B class of fit and H5 thread limit for consistent UNC thread accuracy
• Right-hand thread direction, 5/16-18 UNC, Series 5305 and 5303

Compatibility

Designed for 5/16-18 UNC threading applications in cast iron and non-ferrous metals. Part of KENNAMETAL Series 5305 and 5303.

Installation Notes

Hand taps are installed and driven by machinists or maintenance technicians using a tap wrench or appropriate tapping fixture. Always power down and de-energize any machine before performing tapping operations on mounted workpieces. Use appropriate cutting fluid for the workpiece material to extend tap life and improve thread quality. Bottoming taps should be used after a taper or plug tap has already established the thread lead in the hole to avoid tap breakage.
