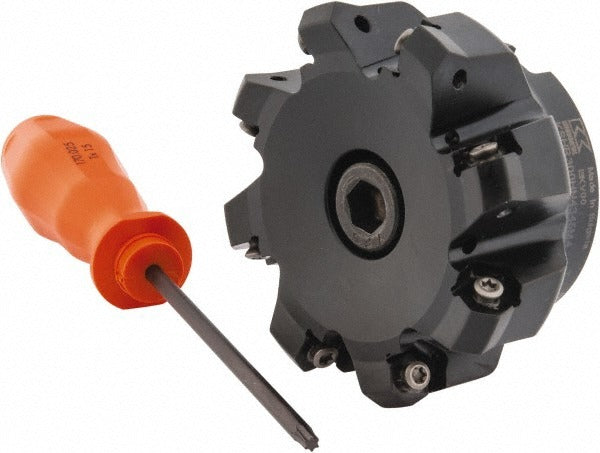

Kennametal 4130495 Indexable Face Mill 3 in Dodeka Mini

Product Description

The KENNAMETAL 4130495 is an indexable face mill designed for precision chamfering and face milling operations in metalworking applications. Built on the Dodeka Mini platform, this cutter accepts HNGJ 0604 inserts secured by screw-style insert holding and delivers a right-hand cutting direction. The 3.0 inch minimum cutting diameter expands to a maximum body diameter of 3.228 inches, with a maximum depth of cut of 0.127 inches (3.23 mm). An 8-insert, 8-flute configuration supports high feed rates and consistent surface finish. Through-coolant capability helps manage heat and chip evacuation at elevated spindle speeds up to 8,300 RPM. Weighing 2.09 pounds, this tool suits CNC machining centers where repeatability and insert indexability reduce downtime.

This face mill is intended for use on CNC vertical and horizontal machining centers in production or job-shop environments. The 45-degree chamfer angle geometry makes it well suited for face milling, chamfering, and shoulder preparation on ferrous and non-ferrous workpieces. The 1 inch arbor hole fits standard arbor mounting interfaces common to mid-size machining centers. Licensed machinists, tool-and-die technicians, and CNC operators working in aerospace, automotive, and general metalworking will find this cutter appropriate for moderate-to-high-volume material removal cycles requiring tight tolerance control.

Key Features

• Dodeka Mini series platform with 8 indexable insert pockets for high productivity
• Compatible with HNGJ 0604ANENLD inserts held by screw-type clamping for secure, repeatable positioning
• 45-degree indexable chamfer angle geometry for face milling and chamfering in a single setup
• Through-coolant design supports chip evacuation and thermal management at speeds up to 8,300 RPM
• Right-hand cutting direction with 8 flutes for balanced cutting forces and smooth surface finish
• Hub diameter of 2.189 inches and overall height of 1.75 inches provide a rigid, low-profile cutter body

Compatibility

Compatible insert size code is HNGJ 0604, with full insert compatibility confirmed for the HNGJ 0604ANENLD insert. The cutter uses a 1 inch arbor hole (25.40 mm) and is designed for use within the KENNAMETAL Dodeka Mini series tooling system.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Confirm the machine spindle is fully stopped and locked out before mounting or removing the cutter. Torque all insert screws using the correct KENNAMETAL Torx key to the manufacturer-specified value documented in the Dodeka Mini tooling guide. Verify arbor fit and runout with a dial indicator before first use, and confirm through-coolant passages are clear and unobstructed prior to operation.
