Kennametal 4050775 TPG322 KCU10 Carbide Turning Insert

Product Description

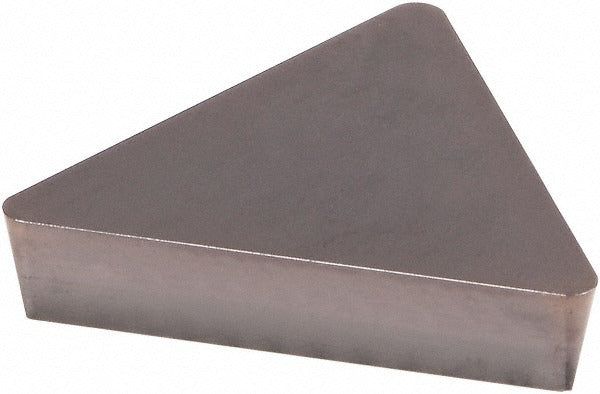

The KENNAMETAL 4050775 is a solid carbide turning insert in the TPG322 configuration, part of the KENDEX series. It features a 60-degree triangular shape with a 3/8 inch (0.3750 inch) inscribed circle and a 1/32 inch (0.0313 inch) corner radius. The insert carries a TiAlN (AlTiN) coating applied via PVD process, which improves heat resistance and tool life in demanding cutting conditions. The cutting edge is honed with a flat-top chip breaker geometry and a neutral hand orientation. Three cutting edges are available per insert. It is designed for use in clamp-style toolholders that accept the TPG insert style.

This insert is rated for turning, facing, and boring operations on steel, stainless steel, superalloys, and titanium — material codes P, M, and S in ISO classification. The KCU10 grade with PVD TiAlN coating is suited for interrupted cuts and tough materials where thermal shock resistance is a factor. The positive rake geometry and honed edge reduce cutting forces and help control built-up edge. Maximum depth of cut is 0.2163 inches. It is appropriate for both production and job-shop environments where a single insert grade needs to handle multiple workpiece materials across light to moderate cuts.

Key Features

• Solid carbide substrate with PVD TiAlN coating for thermal resistance and extended tool life
• TPG322 industry-standard insert size for broad toolholder compatibility
• Three cutting edges per insert maximizes value per unit
• Flat-top chip breaker with positive rake and honed cutting edge reduces cutting forces
• Neutral hand orientation suits left-hand, right-hand, and straight toolholder setups
• Rated for steel, stainless steel, superalloys, and titanium (ISO P, M, S materials)

Compatibility

Designed for use in clamp-style toolholders accepting the TPG insert style with a 3/8 inch inscribed circle. Conforms to ANSI and ISO standards; ISO code TPGN160308. Compatible with multi-use applications including turning, facing, and boring. Material grades C3 and C4.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the toolholder is secured in the turret before seating or indexing the insert. Use the correct clamp screw torque per the toolholder manufacturer's specification — do not over-torque, as carbide inserts are brittle and can crack under uneven clamping load. Inspect the insert pocket and clamp for chips or debris before seating a new edge.
