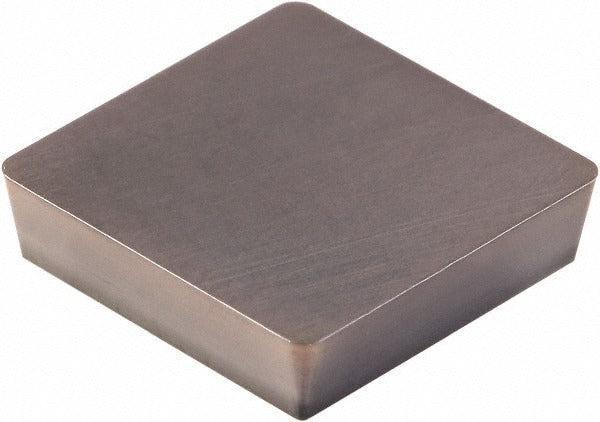

Kennametal 4050765 Turning Insert SPG422 KCU10 Carbide

Product Description

The KENNAMETAL 4050765 is a solid carbide turning insert in the SPG422 geometry, grade KCU10, coated with TiAlN via a PVD process. It carries a 1/2 inch inscribed circle, a 1/8 inch thickness, and a 1/32 inch corner radius on a 90-degree square shape with a flat-top chip breaker. The KCU10 grade delivers high wear resistance balanced with toughness, making it well suited for interrupted and continuous cuts in steel and stainless steel. Licensed machinists, CNC operators, and production turning specialists will find this insert a direct-fit solution for precision material removal applications.

This insert is designed for turning, facing, and boring operations across a range of workpiece materials including steel, stainless steel, cast iron, superalloys, and titanium. The neutral hand orientation and positive rake geometry support efficient chip formation at moderate to high cutting speeds. With four usable cutting edges per insert and a clamp-style holding method, it fits standard KENDEX-series toolholders. It is appropriate for both light finishing passes and moderate material removal depths up to 0.1665 inches.

Key Features

• TiAlN PVD coating provides high-temperature wear resistance for steel and stainless steel applications
• Four cutting edges per insert extend tool life and reduce per-edge cost
• Flat-top chip breaker geometry supports positive rake cutting action
• Positive side clearance (Code P) and honed cutting edge style reduce built-up edge tendency
• Multi-use design supports turning, facing, and boring in a single insert style
• Solid carbide substrate (Material Grade C3/C4) for dimensional stability at elevated cutting temperatures

Compatibility

Designed for use in clamp-style toolholders that accept SPG-style square inserts with a 1/2 inch inscribed circle. Part of the KENNAMETAL KENDEX series. Conforms to ANSI insert code SPG422 and ISO insert code SPG120308 (Iso Code SPGN120308).

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and locked out before seating or indexing any insert. Verify the insert pocket and clamp seat are free of chips and debris before torquing the clamping screw to the toolholder specification. Inspect the cutting edge for chipping after each index before returning the tool to service.
