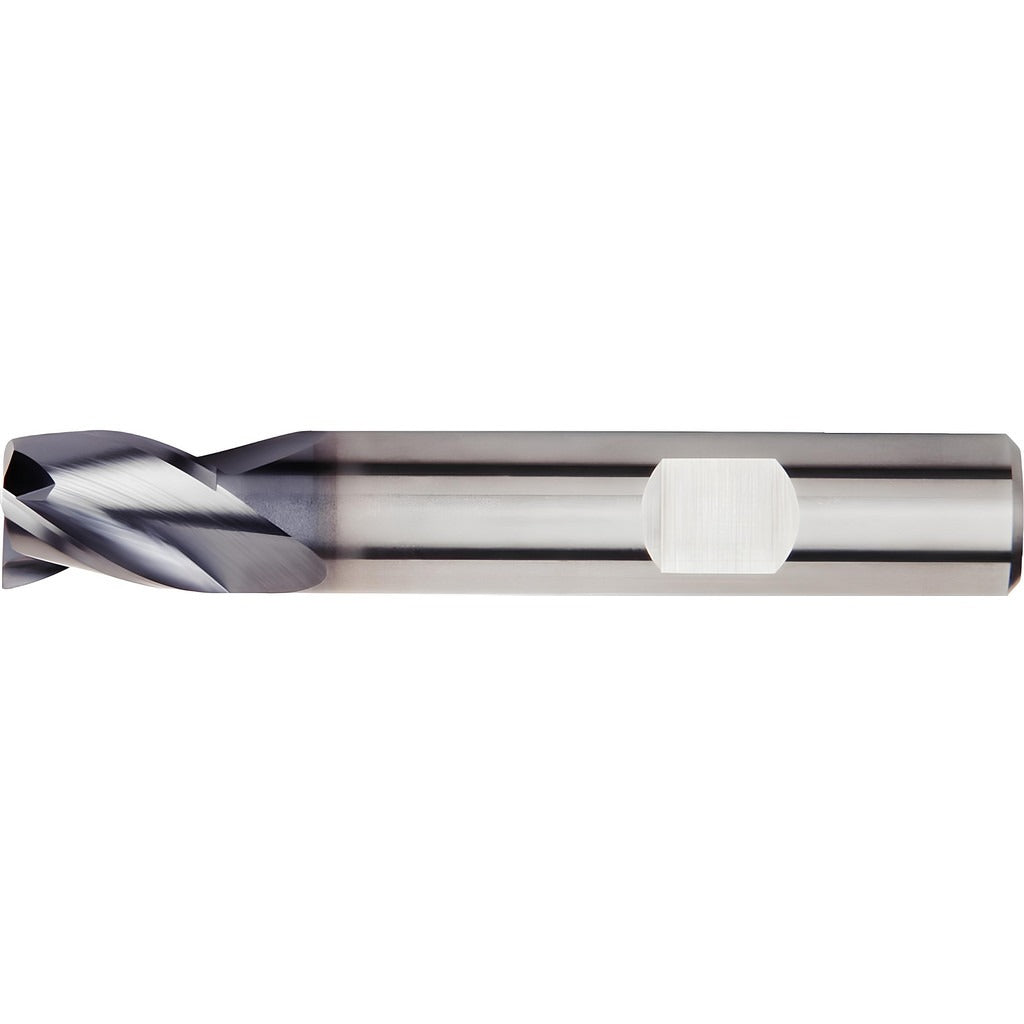

Kennametal 4046358 Corner Radius End Mill 4mm 3 Flute Carbide

Product Description

The KENNAMETAL 4046358 is a solid carbide corner radius end mill engineered for aggressive material removal in ferrous and hard materials. Built on the F3AS series platform, it features a 4 mm cutting diameter, a 0.25 mm corner radius, and three right-hand spiral flutes with a medium helix angle of 35 degrees. The AlTiN PVD coating provides thermal resistance and extended tool life in dry or semi-dry cutting conditions. At 58 mm overall length with a 5 mm length of cut, this is a long-reach configuration suited for deeper pocketing and slotting passes where tool rigidity is critical. Installed by machinists and toolroom operators on CNC milling centers.

The 4046358 is designed for roughing operations in steel, stainless steel, cast iron, superalloys, titanium, and hard materials — covering ISO material groups P, M, K, S, and H. The coarse pitch flute geometry promotes chip evacuation during aggressive cuts. The 6 mm Weldon flat shank seats securely in ER single angle standard collets and HC hydraulic sleeves with metric bores, making it compatible with a wide range of standard CNC toolholding systems. This single-end configuration is center-cutting, allowing plunge entry where the operation requires it.

Key Features

• Solid carbide submicron-grade substrate for strength and wear resistance in hard and abrasive materials
• AlTiN PVD coating rated for high-heat dry cutting applications including superalloys and hardened steels
• 0.25 mm corner radius reduces corner chipping and improves surface finish at pocket edges
• Center-cutting geometry allows direct plunge entry without a pre-drilled start hole
• Weldon flat shank provides positive drive and reduced pullout risk in high-torque roughing conditions
• Right-hand cut, right-hand flute spiral with medium 35-degree helix for balanced chip flow and stability

Compatibility

Designed for use with ER single angle standard collets and HC 1/2 through HC 1-1/4 hydraulic sleeves with metric bores. Suited for CNC vertical and horizontal machining centers running steel, stainless steel, cast iron, superalloys, titanium, and hard materials.

Installation Notes

Installation and tool changes must be performed with the spindle fully stopped and the machine in an e-stop or locked-out state per applicable machine guarding procedures. Seat the Weldon flat against the toolholder setscrew and torque to the toolholder manufacturer specification. Verify runout with a dial indicator before initiating a cut. Do not exceed the rated length of cut when programming depth-of-cut passes, as overloading the flute length accelerates tool wear and risks breakage.
