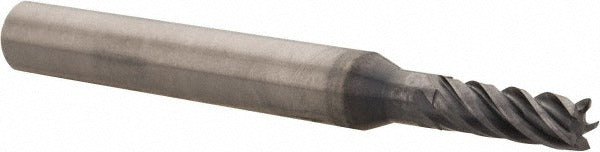

Kennametal 4046285 Square End Mill 4mm 5 Flute Altin Carbide

Product Description

The KENNAMETAL 4046285 is a solid carbide square end mill designed for high-performance milling in demanding metal-cutting applications. With a 4 mm cutting diameter, 11 mm length of cut, and 5 flutes, it delivers excellent material removal rates while maintaining surface finish quality. The 38-degree helix angle and variable index flute spacing reduce chatter and vibration during cut. An AlTiN coating provides thermal resistance and extended tool life when machining at elevated cutting temperatures. This end mill is a single-end, right-hand cut tool from KENNAMETAL's UCDE series, intended for use by machinists and CNC operators in production and job-shop environments.

The 4046285 is suited for milling steel, stainless steel, cast iron, and hardened materials. Its 6 mm shank diameter fits standard ER collet chucks and end mill holders commonly found on CNC machining centers and CNC mills. The 55 mm overall length provides adequate reach for typical pocket, slot, and profile milling operations without introducing excessive overhang. It is not center-cutting and is not designed for direct plunge entry. Coolant-through capability is not present, so external flood or mist coolant is the standard cooling method for this tool.

Key Features

• 4 mm cutting diameter with 11 mm length of cut for small-feature milling
• 5-flute geometry increases feed rate capability compared to 4-flute designs
• AlTiN coating improves heat resistance and extends tool life in ferrous materials
• 38-degree helix angle promotes smooth cutting action and chip evacuation
• Variable index flute spacing reduces harmonic vibration and chatter
• Solid carbide construction from KENNAMETAL material grade KCPM15

Compatibility

Designed for use in standard 6 mm shank ER collet chucks, shrink-fit holders, and end mill holders on CNC machining centers. Rated for steel (P), stainless steel (M), cast iron (K), and hardened materials (H) per ISO workpiece material classification. Part of the KENNAMETAL UCDE series.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the tool changer is in a safe state before mounting or removing the end mill. Confirm the collet or holder bore matches the 6 mm shank diameter and that runout is within acceptable limits for the intended operation. Do not use this tool for plunge cutting, as it is not center-cutting.
