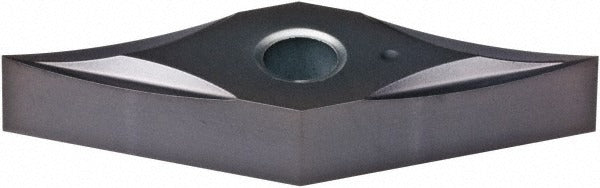

Kennametal 4045146 Turning Insert VNGP3305 KCU10 Carbide

Product Description

The KENNAMETAL 4045146 is a solid carbide turning insert in VNGP3305 geometry, manufactured under the KENLOC series with a KCU10 grade designation. It features a PVD-applied TiAlN coating that delivers high wear resistance across a range of cutting conditions. The insert carries a 35-degree diamond (rhombic) shape with a neutral hand orientation, a 0.008 inch corner radius, and a 0.375 inch inscribed circle diameter. With four usable cutting edges and a negative rake and clearance configuration, it is suited for productive material removal in turning, facing, boring, back turning, and back boring operations. Licensed machinists and CNC lathe operators are the typical users.

This insert is designed for medium machining chip breaker applications. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium, making it broadly applicable across job shops, aerospace component machining, and general precision turning environments. It conforms to ANSI insert code VNGP3305 and ISO insert code VNGP160402, allowing direct cross-reference with ANSI and ISO tooling systems. The insert is held by clamp or pin style toolholders that accept VNGP geometry inserts with negative side clearance.

Key Features

• KCU10 grade with PVD TiAlN coating for high wear resistance in steel, stainless steel, and superalloy cutting
• 35-degree diamond (V-shape) with four cutting edges for extended tool life per insert
• 0.375 inch inscribed circle, 0.1875 inch thickness, and 0.008 inch corner radius for consistent dimensional accuracy
• Honed cutting edge style reduces micro-chipping during interrupted and continuous cuts
• Maximum depth of cut up to 0.4354 inches supports both roughing and semi-finishing passes
• Multi-use capability across turning, facing, boring, back turning, and back boring operations

Compatibility

Designed for use in VNGP-geometry toolholders with clamp or pin holding method and negative side clearance, compatible with ANSI VNGP3305 and ISO VNGP160402 insert seat specifications. Suitable for primary workpiece materials coded P, M, K, N, S, and H.

Installation Notes

Insert replacement should be performed by a qualified machinist with the machine powered down and the spindle fully stopped. Seat and clamping surfaces should be cleaned before seating the insert to ensure proper contact and runout accuracy. Clamp torque and holder condition should be verified per the toolholder manufacturer guidelines. Do not operate the insert beyond its rated maximum depth of cut or outside recommended cutting parameters for the workpiece material.
