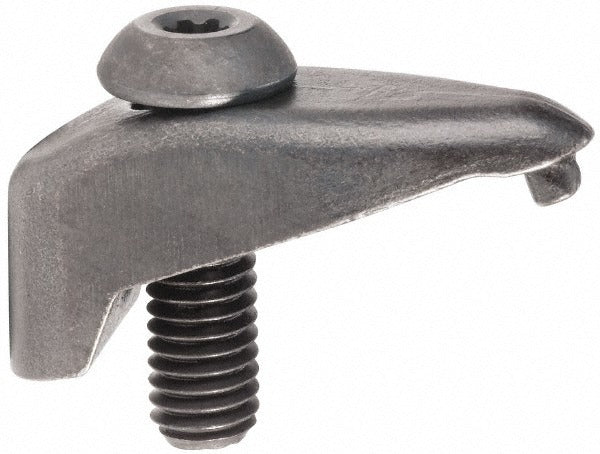

Kennametal 4004710 Cm Dual Clamp Indexable

Product Description

The KENNAMETAL 4004710 is a CM-style dual clamp designed to secure indexable inserts in compatible toolholders used in metal cutting and turning operations. This clamp provides positive insert retention through a dual clamping action, keeping the insert locked firmly against the pocket seat during interrupted cuts and high-feed passes. Weighing 0.02 pounds, it is a lightweight but precisely machined component. Licensed machinists and toolroom technicians install this clamp as a replacement or spare when refitting indexable toolholder assemblies. It ships in a package quantity of one and carries a minimum order quantity of five units.

This CM dual clamp is suited for use in CNC turning centers, manual lathes, and boring applications where indexable insert toolholders require periodic clamp replacement due to wear or damage. It is compatible with DV.N series toolholder configurations per the manufacturer specification. The clamp is intended for production machining environments as well as job shop toolrooms where Kennametal indexable tooling systems are in active use.

Key Features

• CM clamp style provides dual clamping action for positive indexable insert retention
• Designed for DV.N series complete toolholder compatibility
• Lightweight at 0.02 pounds for minimal toolholder mass addition
• Package quantity of one allows targeted replacement of worn or damaged clamps
• Fits within the Kennametal Dual Clamp series for consistent spare parts stocking

Compatibility

Specified for use with DV.N series complete toolholders as noted in manufacturer attributes. Intended as an OEM-style replacement clamp within the Kennametal Dual Clamp series for indexable insert toolholder assemblies.

Installation Notes

Installation and replacement of indexable clamps is performed by machinists or toolroom technicians. Remove all workpieces and ensure the machine spindle is fully stopped and locked out before servicing any toolholder assembly. Use the correct Torx or hex key as specified by the toolholder design to remove and reseat the clamp screw. Inspect the insert pocket and seating surface for wear or debris before installing the replacement clamp.
