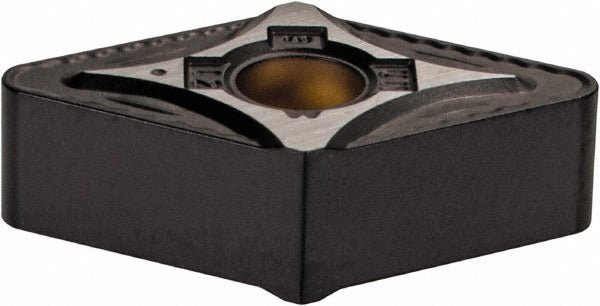

Kennametal 3757597 DNMG333UN KCK20 Turning Insert

Product Description

The KENNAMETAL 3757597 is a solid carbide turning insert in the DNMG333UN geometry, grade KCK20, designed for high-wear-resistance machining of steel and cast iron. It features a 55-degree diamond (rhombic) shape with a neutral hand orientation and a negative rake and side clearance configuration. The insert measures 11.63 mm in length with a 3/8-inch inscribed circle and a 3/64-inch corner radius. The PVD-applied multilayer AlTiN and AlCrN coating delivers extended tool life in demanding turning, facing, boring, back turning, and back boring operations. It is part of the KENNAMETAL KENLOC series and conforms to ANSI insert code DNMG333 and ISO insert code DNMG110412.

This insert is suited for roughing and medium machining applications on steel (ISO P workpiece material) and cast iron (ISO K workpiece material). The KCK20 grade provides high wear resistance against steel and a range from high wear resistance to moderate toughness against cast iron. It is held using a clamp or pin method, making it compatible with standard KENLOC-style toolholders used in CNC turning centers and manual lathes across both production and job-shop environments. The maximum depth of cut is 0.0492 inches (1.25 mm).

Key Features

• PVD multilayer AlTiN and AlCrN coating for high wear resistance in steel and cast iron cutting
• 55-degree diamond insert shape (DNMG) with chamfered and honed cutting edge style
• 4 cutting edges per insert for extended insert life and lower per-edge cost
• UN chip breaker geometry optimized for roughing and medium machining operations
• Clamp or pin holding method compatible with KENLOC-series toolholders
• Conforms to ANSI and ISO standards for broad toolholder interchangeability

Compatibility

Designed for use in KENLOC-series toolholders accepting DNMG-style inserts with clamp or pin holding. Suitable for multi-use turning applications including turning, facing, boring, back turning, and back boring on steel and cast iron workpiece materials.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Seat the insert fully against the pocket locating surfaces before engaging the clamp or pin to ensure proper geometry and cutting edge position. Inspect the insert pocket for wear or damage each time the insert is indexed.
