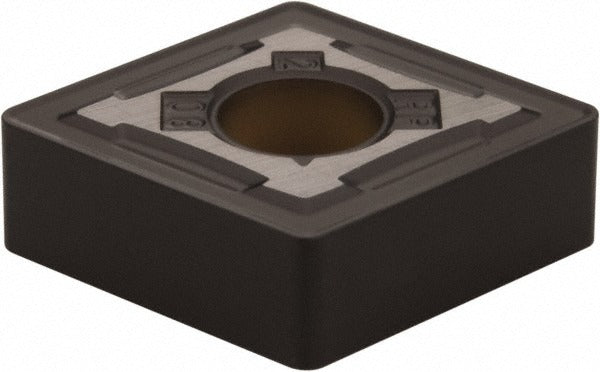

Kennametal 3751511 CNMG432RP KCP05 Carbide Turning Insert

Product Description

The KENNAMETAL 3751511 is a CNMG432RP-style indexable turning insert in the KENLOC series, finished with a multilayer TiCN and Al2O3 CVD coating under the KCP05 grade designation. It features an 80-degree diamond shape, a neutral hand orientation, and a negative rake geometry with a chamfered and honed cutting edge. The insert measures 12.9 mm (0.5077 inches) in length with a 1/2-inch inscribed circle and a 1/32-inch corner radius. Four cutting edges are available per insert. Licensed HVAC techs and machinists in production turning environments select this insert for its durability on steel and cast iron workpieces.

This insert is suited for turning, facing, and boring operations on steel and cast iron. It is a fit for medium to roughing passes where a negative rake geometry provides edge strength. The RP chip breaker geometry helps manage chip control across a range of feed rates and depths. Maximum depth of cut is 1.25 mm (0.0492 inches). It is held in place using a clamp and pin method, consistent with standard CNMG toolholders meeting ANSI and ISO standards.

Key Features

• KCP05 grade with multilayer CVD TiCN and Al2O3 coating for wear resistance on steel and cast iron
• 80-degree diamond insert shape (CNMG style) with negative rake and 5-degree rake angle
• RP chip breaker geometry for effective chip control during turning, facing, and boring
• Four usable cutting edges per insert for cost efficiency
• Chamfered and honed cutting edge style for improved edge integrity
• Clamp and pin holding method compatible with standard CNMG toolholders

Compatibility

Designed for use in ANSI- and ISO-standard CNMG toolholders using clamp and pin insert retention. Primary workpiece materials are steel (P) and cast iron (K). Compatible with multi-use turning, facing, and boring applications.

Installation Notes

Installation is performed by a machinist or toolroom technician using the appropriate CNMG-style toolholder. Power down and lock out the machine before indexing or replacing inserts. Use proper insert seating torque per the toolholder manufacturer specifications - do not overtighten the clamp screw. Inspect the insert pocket and clamp for wear or debris before seating a new edge.
