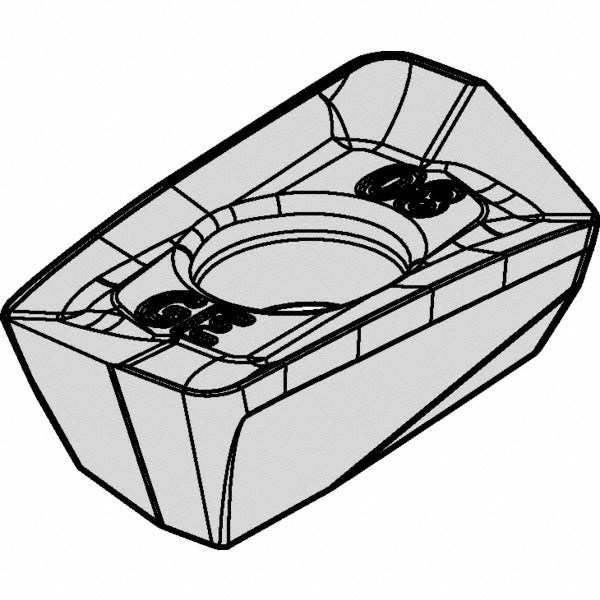

Kennametal 3642163 Milling Insert EDPT10T304PDSRGD KCPK30

Product Description

The KENNAMETAL 3642163 is a solid carbide milling insert with ISO designation EDPT10T304PDSRGD and manufacturer grade KCPK30. It features a parallelogram insert shape, a positive rake geometry, and a chamfered and honed cutting edge style with two cutting edges per insert. The CVD-applied multilayer coating stack — TiN, TiCN, and Al2O3 — delivers wear resistance and thermal stability across a range of metal-cutting applications. At 0.1476 inches thick and 0.2657 inches wide, this single-sided, right-hand insert is held in place by screw clamping and is compatible with the Mill 1-10 cutter series. It weighs approximately 0.05 pounds.

This insert is intended for milling operations in ferrous and difficult-to-machine materials including steel, stainless steel, cast iron, superalloys, and titanium — corresponding to ISO material groups P, M, K, and S. It is suited for face milling, shoulder milling, and general-purpose milling passes where tool life and edge stability are priorities. The GD chip breaker designation supports controlled chip formation across these material groups. Licensed machinists and CNC tooling technicians install this insert in production and job-shop environments alike. The ANSI code for this insert is EP1004SGD and the UNSPSC code is 23291601.

Key Features

• Solid carbide substrate with CVD multilayer coating: TiN, TiCN, and Al2O3 for extended wear life
• Positive rake angle and 15-degree relief angle reduce cutting forces on the workpiece
• GD chip breaker geometry supports chip control in steel, stainless steel, cast iron, and superalloys
• Chamfered and honed cutting edge style improves edge strength and reduces micro-chipping
• Right-hand, single-sided insert with two cutting edges; screw-clamped retention
• Conforms to both ANSI and ISO standards for drop-in replacement consistency

Compatibility

Designed for use with the Kennametal Mill 1-10 cutter series. Insert style is EDPT, insert size code 10T304. Verified compatible cutter series compatibility is limited to Mill 1-10 as specified in manufacturer data.

Installation Notes

Installation is performed by CNC machinists or tooling technicians. Power down and lock out the machine spindle before seating or removing inserts. Use the manufacturer-specified torx or hex key to drive the clamping screw to proper engagement — do not overtighten, as this can fracture the carbide body. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
