Kennametal 3639877 DCMT3252MP KCP25 Turning Insert

Product Description

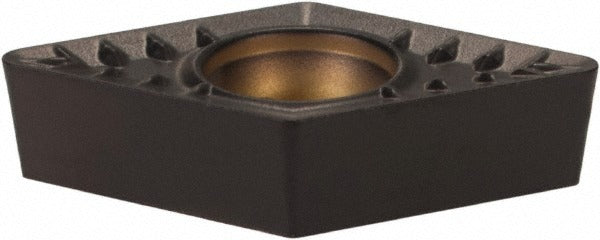

The KENNAMETAL 3639877 is a solid carbide turning insert in the DCMT3252MP configuration, grade KCP25, with a multilayer MTCVD-applied TiCN and Al2O3 coating. It features a 55-degree diamond (rhombic) shape with a positive rake angle of 12 degrees and a 7-degree relief angle, making it well-suited for moderate material removal rates where both wear resistance and toughness are required. The insert measures 11.63 mm (0.9156 inches) in length with a 3/8-inch inscribed circle and a 1/32-inch corner radius. It carries two cutting edges and uses a screw-on holding method. Licensed machinists and CNC turning specialists install this insert in production and job-shop environments.

The MP chip breaker geometry targets roughing and medium machining operations. Primary workpiece materials are steel and cast iron (ISO material code P), with additional suitability for aluminum and non-ferrous materials (ISO code N). Multi-use applications include turning, facing, boring, back turning, and back boring. The insert conforms to both ANSI and ISO standards, with ANSI insert code DCMT3252 and ISO insert code DCMT11T308, allowing straightforward toolholder cross-referencing across both systems.

Key Features

• MTCVD multilayer TiCN and Al2O3 coating for wear resistance in steel and cast iron applications
• 55-degree diamond shape with positive rake (12 degrees) and positive side clearance for reduced cutting forces
• MP chip breaker optimized for roughing and medium machining passes
• KCP25 grade delivers moderate wear resistance and toughness across steel (P) and non-ferrous (N) workpiece categories
• Two usable cutting edges per insert; screw-on mounting for secure, repeatable seating
• Conforms to ANSI and ISO insert standards for broad toolholder compatibility

Compatibility

Designed as an OEM-style replacement or direct-fit insert for screw-on style DCMT toolholders conforming to ANSI size code 3252 and ISO size code 11T308. Compatible with material grades C2, C3, C6, and C7 application ranges.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Use the correct Torx or hex key specified by the toolholder manufacturer to seat the clamping screw - do not overtighten, as this can fracture the carbide substrate. Inspect the insert pocket and seating surface for chips or debris before seating a new insert to ensure accurate tool-nose positioning.
