Kennametal 3381185 Carbide Replaceable Tip Drill 23.42mm Ksem

Product Description

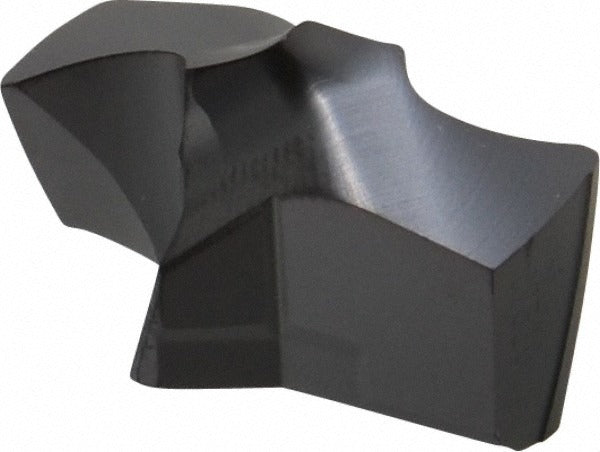

The KENNAMETAL 3381185 is a carbide replaceable tip drill in the KSEM series, designed for high-performance hole-making in demanding industrial and metalworking applications. The drill accepts an KSEM0922HPL solid carbide insert tip with an HPL geometry and an AlTiN (aluminum titanium nitride) PVD coating. It cuts a nominal diameter of 23.42mm (59/64 inch) with a 140-degree included point angle. The two-flute, regular helical spiral design promotes efficient chip evacuation. The replaceable tip format reduces tooling cost by allowing insert changes without replacing the full drill body. Licensed machinists and CNC operators are the primary users.

This drill is engineered for production drilling in steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium — corresponding to ISO material groups P, M, K, N, and S. It is suited for through-hole and blind-hole drilling, inclined-exit drilling, and stacked-plate drilling applications. The KSEM platform and insert seat size 4 are consistent with medium-diameter precision drilling programs in job shop and production environments. The 23.42mm cutting diameter targets tight-tolerance bores where a solid carbide tip provides accuracy and edge retention that HSS tools cannot match.

Key Features

• Solid carbide KSEM0922HPL replaceable tip with HPL insert geometry for controlled chip formation
• AlTiN PVD coating provides heat resistance and extended tool life in ferrous and superalloy materials
• 140-degree standard point angle reduces thrust and entry burr on a wide range of workpiece materials
• Two-flute regular helical design supports reliable chip evacuation in both through and blind holes
• Clamp-style insert holding method ensures repeatable tip seating and positional accuracy
• Compatible with ISO material groups P, M, K, N, and S for broad application versatility

Compatibility

Designed as an OEM-style replaceable tip drill within the KSEM series platform using insert seat size 4. The replaceable tip is identified by ISO number KSEM0922HPL with manufacturer grade KCMS15 fine-grain carbide substrate.

Installation Notes
