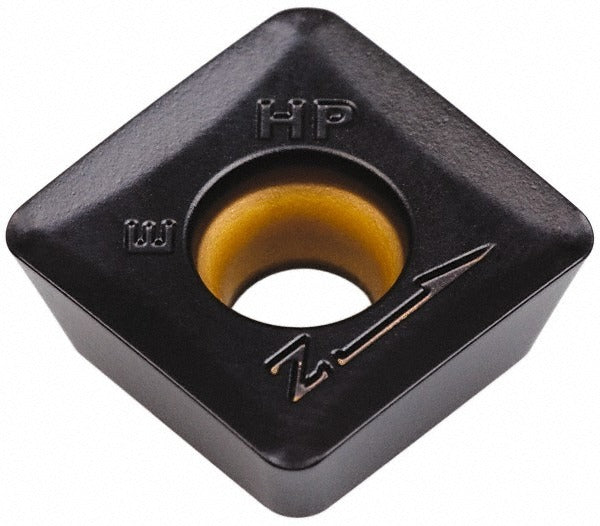

Kennametal 3106096 Milling Insert SDPT120412PDENHPZ KCPK30

Product Description

The KENNAMETAL 3106096 is a solid carbide milling insert carrying ISO designation SDPT120412PDENHPZ and manufacturer grade KCPK30. It features a square insert shape with a neutral hand orientation, four cutting edges, and a positive rake geometry. The insert is CVD-coated with a multilayer TiN, TiCN, and Al2O3 finish for wear resistance across demanding milling applications. At 0.5000 inches in length and width with a 3/16-inch thickness and a 3/64-inch corner radius, this insert is designed for precision metal removal. It is installed and serviced by CNC machinists and tool-and-die professionals working in production or job-shop environments.

This insert is intended for milling operations on steel, stainless steel, cast iron, superalloys, and titanium. The HPZ chip breaker geometry supports stable chip control at varying depths of cut and feed rates. It is compatible with the KSSM cutter series and is suited for both roughing and semi-finishing passes where controlled chip evacuation is critical. Material grade classifications C1, C5, and C6 confirm applicability across a broad range of workpiece hardness levels in both ferrous and non-ferrous categories including superalloys and titanium-based materials.

Key Features

• ISO code SDPT120412PDENHPZ with ANSI code SDPT433PDENHPZ for cross-reference ordering
• CVD multilayer coating: TiN, TiCN, and Al2O3 for heat and wear resistance
• Four cutting edges on a single-sided square insert for cost-effective indexing
• HPZ chip breaker for controlled chip formation in interrupted and continuous cuts
• Positive rake angle and honed cutting edge for reduced cutting forces
• Neutral hand design allows use in a wide range of milling cutter orientations

Compatibility

Designed for use with the KSSM cutter series. Compatible with milling applications involving steel, stainless steel, cast iron, superalloys, and titanium. Insert is screw-held and conforms to both ANSI and ISO standards.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key to secure the clamping screw to the cutter body seat without over-torquing the fastener. Inspect the cutter pocket and seating surface for chips or debris before installing a new insert to ensure proper seating and runout control.
