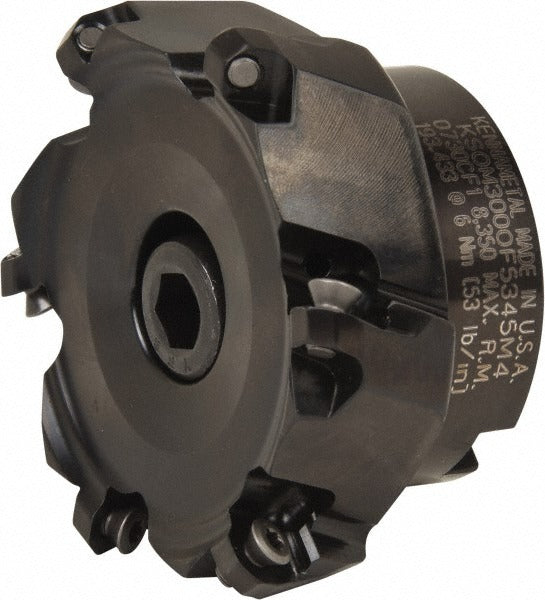

Kennametal 3093636 Indexable Face Mill 3in Ksom Mini

Product Description

The KENNAMETAL 3093636 is an indexable chamfer angle face mill designed for precision milling operations in metalworking environments. Built to the KSOM Mini series standard, it accepts six OF.T 06L5 inserts secured by screw-type clamping and cuts in a right-hand direction. The cutter operates at a minimum cutting diameter of 3.0 inches and a maximum cutting diameter of 3.343 inches, with a maximum depth of cut of 3.50 mm (0.138 inches). Rated to 8,350 RPM, it is suited for medium-pitch face milling applications on machining centers and horizontal mills. Machinists and tooling specialists are the primary installers and operators of this cutter body.

This face mill is used in production and job-shop environments for chamfer-angle face milling on ferrous and non-ferrous workpieces. The 43-degree chamfer angle geometry suits surface preparation, facing, and light contouring passes. The medium pitch configuration balances chip evacuation and insert engagement, making it appropriate for both roughing passes and semi-finish cuts. With a 1-inch arbor hole, it mounts to standard arbor toolholders common in CNC machining centers. Coolant-through capability is not supported on this body.

Key Features

• Six-insert indexable design with screw-type insert holding for secure clamping under load
• OF.T 06L5 compatible insert size for broad insert availability
• Maximum spindle speed of 8,350 RPM suitable for high-productivity milling cycles
• Medium pitch configuration balances chip flow and insert engagement
• 1-inch arbor hole fits standard CNC machining center toolholding systems
• Right-hand cut orientation for conventional milling center setups

Compatibility

Designed for use with OF.T 06L5 series inserts. Compatible with standard 1-inch arbor toolholders on CNC machining centers. Part of the KSOM Mini series platform.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully powered down and locked out before mounting or removing the cutter body. Verify arbor and keyway dimensions match the machine spindle before assembly. Inserts should be seated and torqued per the insert manufacturer torque specification using a calibrated T-key wrench; do not overtighten or use impact tools on insert screws.
