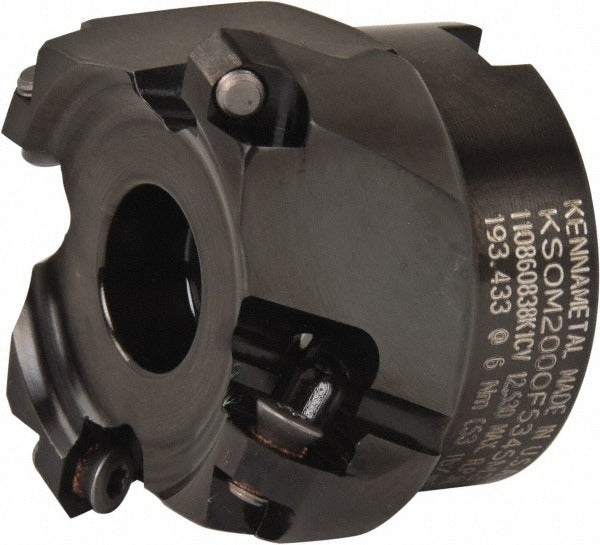

Kennametal 3093634 Indexable Face Mill 2in 4 Flute Ksom Mini

Product Description

The KENNAMETAL 3093634 is a 2-inch indexable face mill designed for precision milling operations in metal cutting applications. Part of the KSOM Mini series, this right-hand cutter runs a medium pitch insert pattern with 4 flutes and accepts OF.T 06L5 inserts secured by screw-style insert holding. The arbor hole measures 3/4 inches (19.05 mm) for direct mounting to standard arbors. Maximum depth of cut is 3.5 mm (0.138 inches). The cutter body reaches a maximum diameter of 2.35 inches, with an overall height of 1.57 inches. It is rated to a maximum spindle speed of 12,530 RPM. Installed by machinists and toolroom technicians on CNC machining centers and manual milling machines.

The 3093634 is suited for face milling applications in production and job-shop environments where compact tooling and precise shoulder geometry are required. The 43-degree chamfer angle and KSOM Mini series geometry target light-to-medium stock removal on ferrous and non-ferrous materials. The medium pitch layout balances chip evacuation with insert support across 4 cutting positions. This tool is typically used on horizontal and vertical milling machines where a 3/4-inch arbor interface is standard.

Key Features

• 2-inch minimum cutting diameter with 2.35-inch maximum body diameter for flexible fit in tight setups
• 4-flute, medium pitch design balances cutting load and chip clearance
• Screw-held OF.T 06L5 inserts for repeatable indexing and secure clamping
• 43-degree chamfer angle geometry in the KSOM Mini series
• Maximum rated speed of 12,530 RPM for high-speed machining applications
• 3/4-inch arbor hole with keyway for positive rotational drive

Compatibility

Designed to accept OF.T 06L5 series inserts. Mounts to standard 3/4-inch (19.05 mm) arbors with a keyway width of 0.313 inches. Part of the KSOM Mini series platform.

Installation Notes

This tool is installed by qualified machinists or toolroom technicians. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter body. Verify arbor and keyway dimensions match before installation, and confirm insert seats are clean and free of chips before indexing or replacing inserts. Follow the machine manufacturer torque specifications for arbor nut tightening and confirm runout after mounting.
