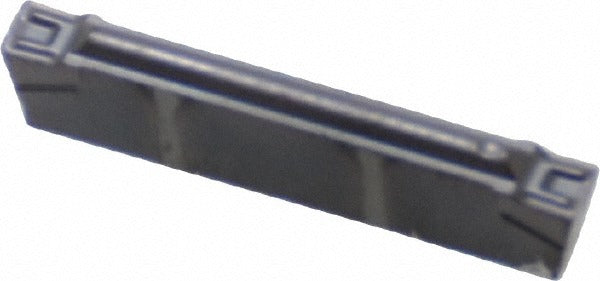

Kennametal 2984028 Grooving Insert KC5010 Tialn

Product Description

The KENNAMETAL 2984028 is a solid carbide grooving insert with a G05GMN chip breaker geometry and KC5010 grade coating, designed for precision grooving operations on CNC lathes and turning centers. The insert features a PVD-applied TiAlN finish that provides thermal resistance and edge durability during interrupted or continuous grooving passes. With a cutting width of 2.39 mm and a maximum depth of cut of 1.90 mm, this neutral-hand insert is suited for tight-tolerance groove profiling in both steel and cast iron workpiece materials classified under C3 and C4 material grades. Machinists and CNC operators working in production turning environments are the primary users.

This insert is applied in external grooving and parting operations on conventional and CNC turning equipment. The neutral hand orientation allows use in straight-plunge grooving setups without directional bias. The A4 series designation and GMN chip breaker geometry are optimized for controlled chip evacuation in shallow-to-medium depth grooves, making this insert appropriate for medium to fine finishing passes in high-volume production and job-shop turning applications.

Key Features

• KC5010 grade with PVD TiAlN coating for extended tool life in steel and cast iron
• GMN chip breaker geometry for controlled chip formation in grooving operations
• 2.39 mm cutting width with a maximum depth of cut of 1.90 mm
• Neutral hand orientation for straight-plunge grooving setups
• Corner radius of 0.20 mm for fine groove geometry control
• Multi-use capable insert for both grooving and parting applications

Compatibility

Designed for use in KENNAMETAL A4 series grooving toolholders that accept G05 style inserts. Refer to the manufacturer catalog number A4G094I2BP05GMN to confirm holder compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing the insert. Use the appropriate torx or hex key as specified by the toolholder manufacturer to secure the insert clamp to the recommended clamping torque range for carbide grooving inserts. Inspect the insert pocket and clamp for wear or debris before installing a new insert to ensure proper seating and prevent premature edge failure.
