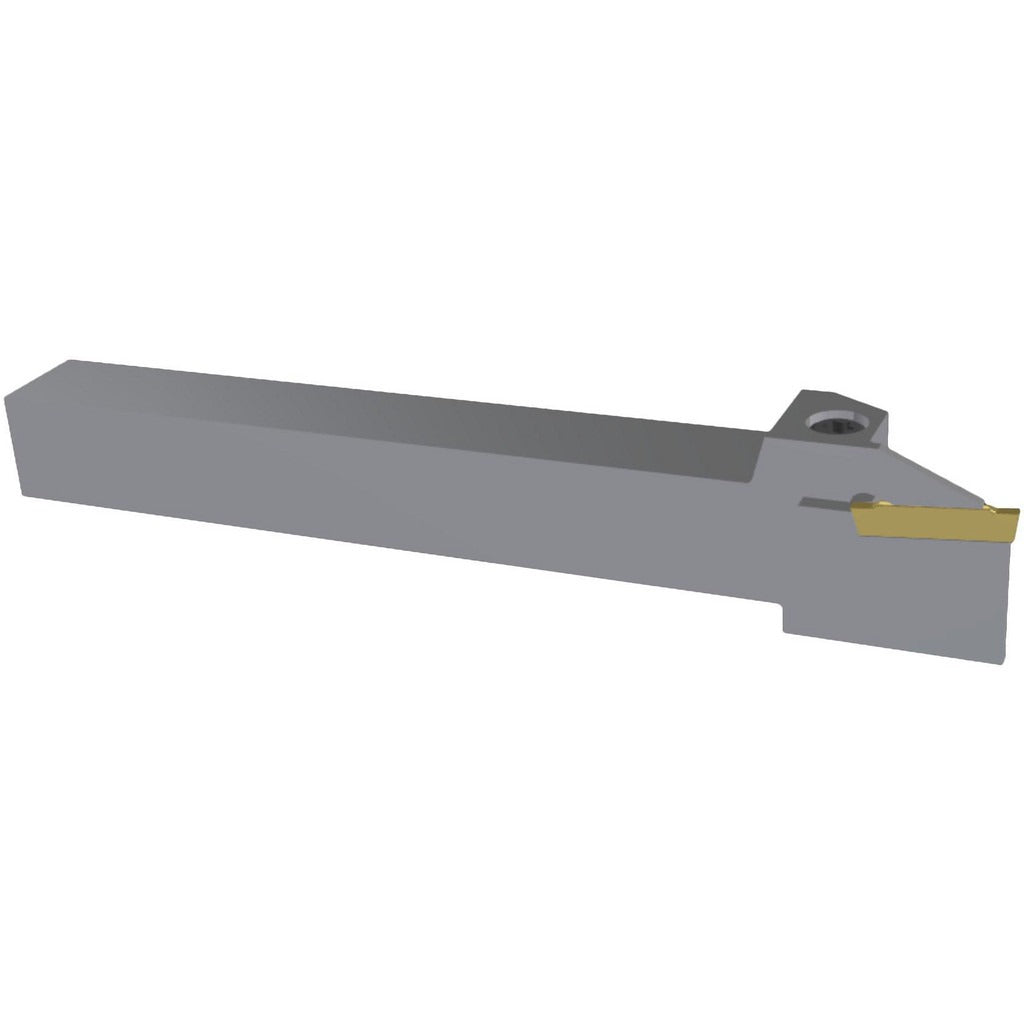

Kennametal 2981102 Indexable Cutoff Toolholder Left Hand

Product Description

The KENNAMETAL 2981102 is a left-hand indexable cutoff toolholder designed for parting and grooving operations on CNC lathes and turning centers. It accepts A4..15.. series inserts secured by a screw-clamp holding method, providing rigid, repeatable insert positioning. The toolholder features a 13 x 13 mm (0.5118 x 0.5118 inch) square shank and delivers a maximum depth of cut of 0.532 inches with a maximum workpiece diameter of 1.063 inches. It is suited for machinists and toolroom operators working with small-diameter bar stock in production or job-shop turning environments.

This toolholder fits standard turning center turrets and gang-tool setups where a compact square shank is required. Its A4SC style head geometry is optimized for cutoff applications on small-diameter workpieces, making it a practical choice for high-volume parting operations on Swiss-type and conventional CNC lathes. The minimum insert width is 1.5 mm (0.0591 inches), keeping groove width tight for material-efficient cutoff work.

Key Features

• Left-hand orientation for cutoff and grooving on CNC lathes
• Screw-clamp insert holding method for secure, repeatable seating
• Compatible with A4..15.. insert family, insert seat size 1
• 13 x 13 mm square shank fits standard turret pockets
• Maximum depth of cut 0.532 inches supports small-diameter parting
• Coolant-through feature not included; external coolant application applies

Compatibility

Designed for use with A4..15.. series inserts in the A4 toolholder system. Insert seat size is 1. Verify turret pocket dimensions match the 13 x 13 mm shank before ordering.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the turret is in a safe index position before mounting or removing the toolholder. Secure the shank in the turret pocket to the machine manufacturer's recommended clamping torque using appropriate toolholder hardware. Verify insert seating and screw torque on the A4..15.. insert before resuming cutting operations.
