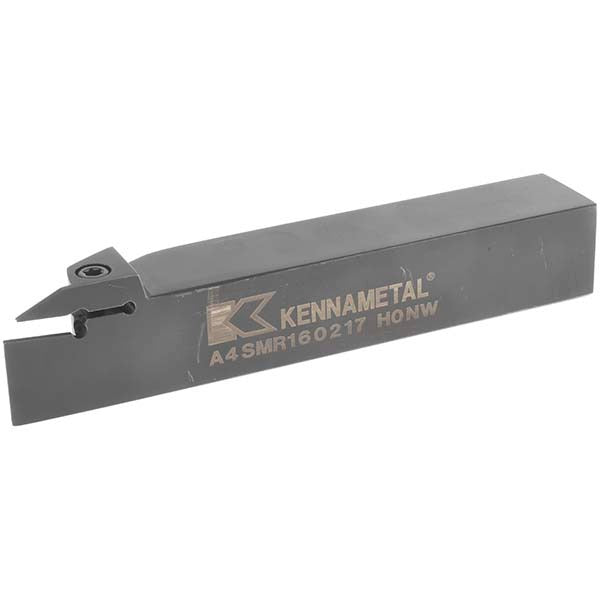

Kennametal 2976498 Grooving Cutoff Toolholder Right Hand

Product Description

The KENNAMETAL 2976498 is an indexable grooving and cutoff toolholder designed for external turning operations on CNC lathes and machining centers. Part of the A4 series, this right-hand holder uses a clamp-style insert holding method compatible with A4..02.. inserts. It delivers a minimum groove width of 0.079 inches and a maximum depth of cut of 0.67 inches (17 mm). The 1 x 1 inch square shank seats securely in standard tool blocks, making setup straightforward for production machinists and toolroom technicians running repetitive grooving or parting operations.

This toolholder is suited for external grooving and cutoff applications in production turning environments, including job shops and manufacturing facilities running medium to high volume work. Its A4 series classification and A4..02.. insert compatibility make it a direct fit for shops already standardized on Kennametal A4 series tooling. The right-hand cutting orientation supports conventional lathe setups where the tool approaches the workpiece from the front of the turret.

Key Features

• Minimum groove width of 0.079 inches suits tight-tolerance grooving work
• Maximum depth of cut of 0.67 inches (17 mm) accommodates most standard parting and grooving depths
• Clamp-style insert holding method provides rigid, repeatable insert seating
• 1 x 1 inch square shank fits standard lathe tool blocks and turret stations
• Overall length of 6.0 inches (152.40 mm) with shank length of 4.622 inches (117.40 mm)
• Right-hand cutting orientation for standard front-mount lathe setups
• A4 series toolholder style with full-radius insert option not required

Compatibility

Designed for use with A4..02.. series inserts as specified by Kennametal for the A4SM toolholder style. No coolant-through capability. Insert seat size is 2.0.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before mounting or removing the toolholder. Secure the shank fully in the tool block or turret station to the depth recommended by the machine tool manufacturer. Inspect insert seating and clamp torque against the insert manufacturer guidelines before running the first cut.
