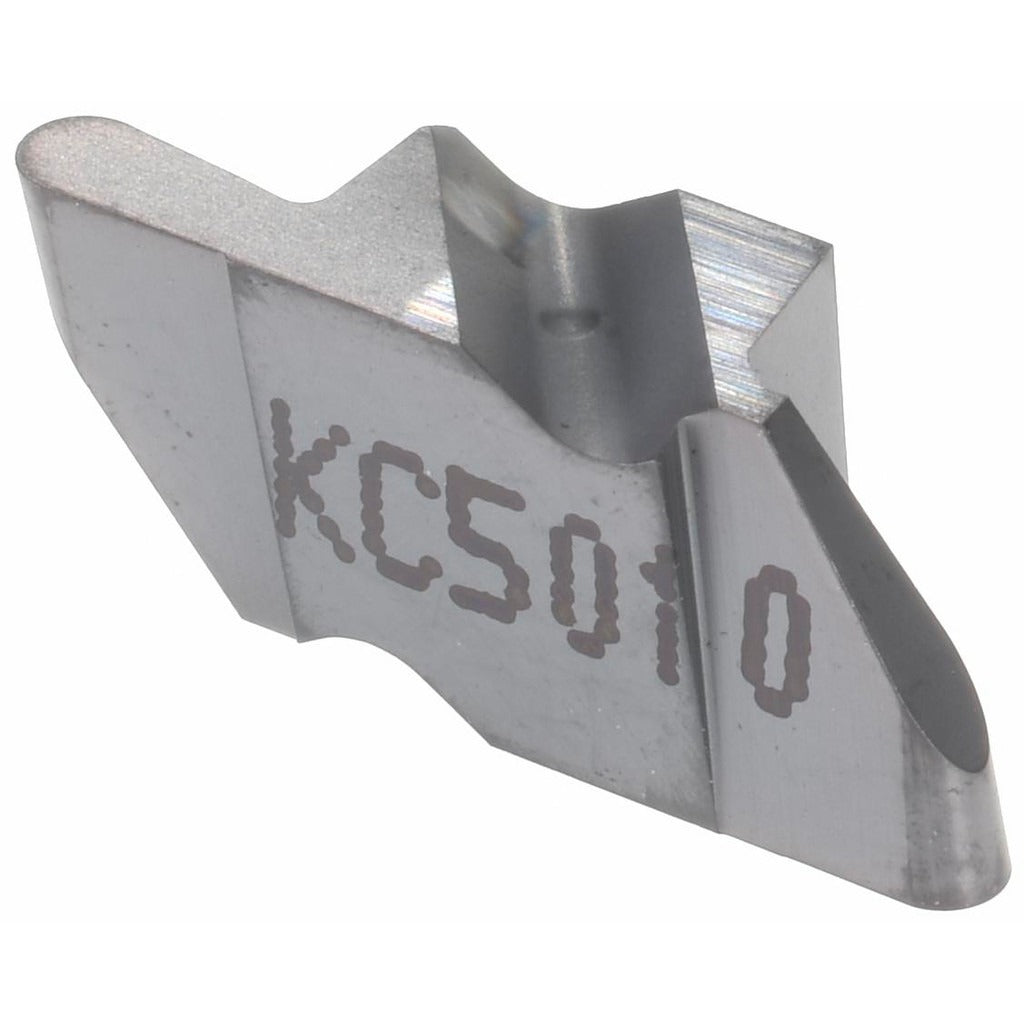

Kennametal 2599757 Grooving Insert NR2031 KC5010 Carbide

Product Description

The KENNAMETAL 2599757 is a solid carbide grooving insert in the Top Notch series, designed for external grooving and parting operations on CNC lathes and turning centers. It carries a KC5010 grade designation with a PVD-applied TiAlN coating, which provides wear resistance and thermal stability during interrupted and continuous cuts. The insert is right-hand orientation with a 1.58 mm cutting width, a maximum depth of cut of 2.79 mm, and a full-radius corner profile with a 0.79 mm corner radius. Machinists and toolroom operators install this insert into compatible Top Notch toolholders for precision groove turning on steel, stainless, and cast iron workpieces.

This insert is suited for production turning environments where consistent groove geometry and surface finish are required. The neutral rake geometry and 55-degree included angle make it appropriate for both light and moderate grooving passes. It is sized as an NR 2031 insert and is sold individually, with a minimum order quantity of 5 units. Applications include groove turning, undercut machining, and snap-ring groove production on turned components in general manufacturing and job shop settings.

Key Features

• KC5010 grade solid carbide with PVD TiAlN coating for extended tool life
• 1.58 mm cutting width with a full-radius corner profile (0.79 mm corner radius)
• Maximum depth of cut of 2.79 mm, within the 2.00 to 3.00 mm depth-of-cut range
• Right-hand insert orientation, neutral rake geometry
• 55-degree included angle suited for grooving and parting applications
• Part of the Top Notch series for use with compatible Top Notch toolholding systems

Compatibility

Designed for use with Top Notch series toolholders that accept NR 2031 style grooving inserts. The manufacturer cross-reference number for this insert style is NR2031R.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The machine spindle must be brought to a full stop and the turret or toolholder must be secured before seating or replacing the insert. Use the appropriate torx or insert-clamping key specified for the Top Notch toolholder being used. Inspect the insert pocket for chips or debris before seating the new insert to ensure proper seating and clamping force.
