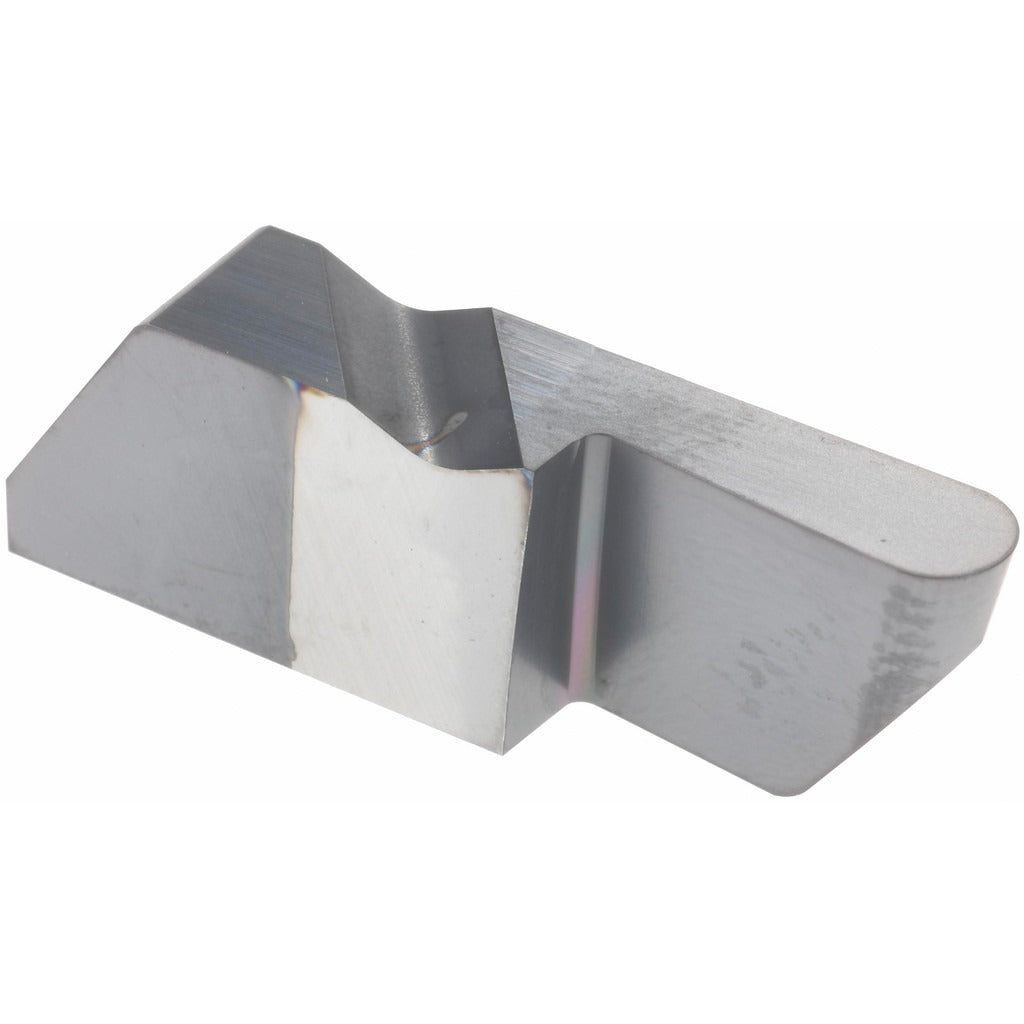

Kennametal 2599538 Grooving Insert NRD4094 KC5010 Carbide

Product Description

The KENNAMETAL 2599538 is a solid carbide grooving insert designed for precision groove turning and parting operations on CNC lathes and turning centers. Running in the Top Notch series, this insert carries the KC5010 grade with a PVD-applied TiAlN coating, which supports extended tool life in steel and cast iron applications. The cutting width is 4.78 mm (0.1882 inches), the maximum depth of cut is 12.70 mm (0.5000 inches), and the full-radius corner measures 2.39 mm (0.0941 inches). The neutral rake geometry and right-hand orientation suit standard OD grooving setups. Installation and use are intended for machinists and toolroom professionals operating compatible Top Notch toolholders.

This insert is suited for external grooving, profiling, and light parting on turning equipment where a metric 4094 insert size is specified. The KC5010 grade targets general-purpose machining of steels and harder materials within the C3 and C4 material grade range. The insert style is NRD with a 55-degree included angle, making it appropriate for applications requiring a defined groove width and full-radius profile. It is sold individually per package with a minimum order quantity of 5 units.

Key Features

• Solid carbide construction with PVD TiAlN coating for wear resistance in steel and cast iron
• Cutting width of 4.78 mm (0.1882 inches) for precise groove dimensioning
• Full-radius corner at 2.39 mm supports consistent groove profiles
• Maximum depth of cut of 12.70 mm fits a broad range of groove depths
• KC5010 grade covers C3 and C4 material grades with neutral rake geometry
• Right-hand orientation for standard OD grooving on CNC turning centers

Compatibility

Designed as an OEM-style replacement insert for Top Notch series toolholders accepting insert seat size 4 and the NRD4094 insert style. Compatible with toolholders rated for the 4094 insert size in the Top Notch system.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered down and the spindle locked before changing inserts. Use the appropriate Top Notch insert clamp and torque the clamping screw according to the toolholder manufacturer specifications. Inspect the insert seat for debris or damage before seating the insert. Never exceed the maximum depth of cut rating for the insert or the toolholder system.
