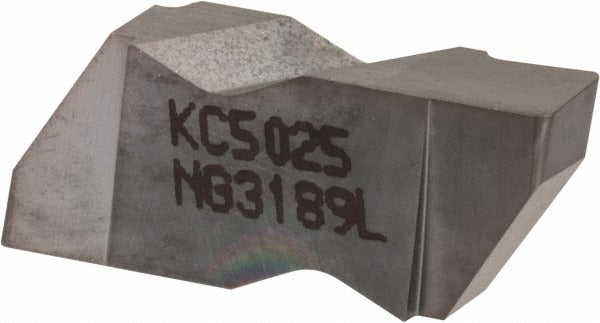

Kennametal 2599529 Grooving Insert NG3189 KC5025 Tialn

Product Description

The KENNAMETAL 2599529 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries a TiAlN coating applied via PVD process, which delivers high hardness and oxidation resistance at elevated cutting temperatures. This insert is sized to the NG3189 Top Notch series profile with a 4.8 mm cutting width and a maximum depth of cut of 3.81 mm. The left-hand orientation suits specific toolholder configurations where the cut is made from left to right. Machining professionals and CNC setup technicians install and index this insert as part of routine tooling maintenance in production turning environments.

This insert is suited for external grooving, undercut, and light parting operations on lathes and multi-axis turning centers. The KC5025 grade with TiAlN finish performs well on steels and cast irons where material grades C2 and C6 apply. The neutral rake geometry and 55-degree included angle support consistent chip control in medium to high production runs. It is intended for use with compatible Top Notch series toolholders that accept the NG3189 insert style.

Key Features

• Solid carbide construction with TiAlN PVD coating for wear and heat resistance
• 4.8 mm cutting width with a 3.81 mm maximum depth of cut
• Left-hand insert orientation for specific toolholder configurations
• Neutral rake angle with 55-degree included angle for controlled chip formation
• Corner radius of 0.57 mm for defined groove geometry
• Top Notch series NG3189 profile for indexed toolholder compatibility

Compatibility

Designed for use with Top Notch series toolholders that accept the NG3189 insert style. Material grades C2 and C6 are designated for this insert per manufacturer specifications.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or CNC tooling technician with the machine fully stopped and locked out per applicable safety procedures. Use the correct torque wrench and clamping screw specified by the toolholder manufacturer when seating the insert. Inspect the toolholder pocket for wear or debris before installing a new insert. Do not exceed the maximum depth of cut specified for this insert size.
