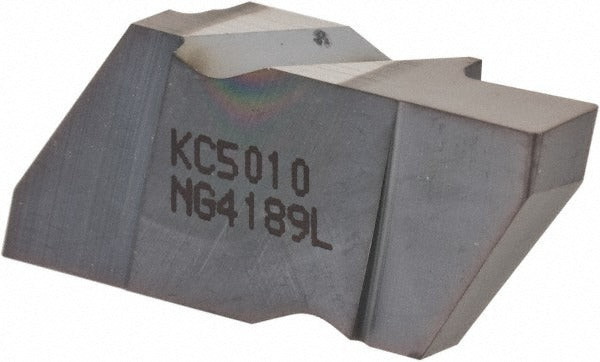

Kennametal 2599497 Grooving Insert NG4189 KC5010 Carbide

Product Description

The KENNAMETAL 2599497 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the KC5010 manufacturer grade with a PVD-applied TiAlN coating, offering strong wear resistance in steel and cast iron applications. The insert has a 4.80 mm cutting width (0.1890 inches) and a maximum depth of cut of 6.35 mm (0.2500 inches). The NG4189 insert style seats into the Top Notch toolholder system and is configured for left-hand cutting. A neutral rake geometry and a 0.57 mm corner radius (0.0225 inches) make it suitable for consistent chip control in general turning applications. Machinists and CNC operators install this insert as part of a standard indexable insert change-out routine.

This insert is intended for metalworking applications on turning equipment where controlled grooving, profiling, or parting is required. The Top Notch series is a dedicated grooving system, and this insert seats into compatible Top Notch insert seat size 4 toolholders. It is suited for shops running ferrous and non-ferrous workpieces where a C3 or C4 material grade carbide is appropriate. Left-hand orientation determines the direction of cut and the required toolholder configuration, so toolholder hand must be confirmed before installation. This insert is sold individually but requires a minimum order quantity of 5 units.

Key Features

• KC5010 grade solid carbide with PVD TiAlN coating for wear resistance in steel and cast iron
• 4.80 mm cutting width with a maximum depth of cut of 6.35 mm
• Left-hand cutting orientation for use with compatible left-hand Top Notch toolholders
• Neutral rake geometry with 0.57 mm corner radius for consistent chip formation
• Top Notch series, insert seat size 4, included angle of 55 degrees
• Maximum depth of cut range of 5.00 mm to 10.00 mm depending on toolholder and application

Compatibility

Designed for use with Top Notch series insert seat size 4 left-hand grooving toolholders. Confirm toolholder hand orientation and insert seat size before installation. No additional specific model compatibility data was provided in the product input.

Installation Notes

This insert is installed by a qualified machinist or CNC tooling technician. The machine spindle must be stopped and all motion arrested before changing inserts. Use the appropriate torx or insert-clamping tool specified by the toolholder manufacturer to seat the insert securely; do not over-torque the clamping screw. Verify left-hand orientation and insert seat size match the toolholder before beginning the operation.
