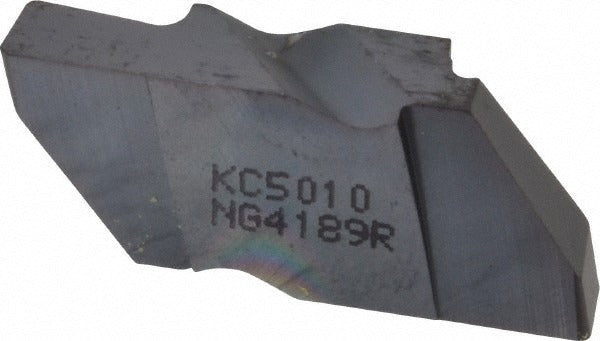

Kennametal 2599495 Grooving Insert KC5010 4.8mm Top Notch

Product Description

The KENNAMETAL 2599495 is a solid carbide grooving insert in the Top Notch series, designed for precision grooving and parting operations on CNC lathes and turning centers. Carrying the KC5010 manufacturer grade with a PVD-applied TiAlN coating, it delivers wear resistance and thermal stability in demanding interrupted and continuous cut applications. The insert features a 4.8 mm cutting width, a maximum depth of cut of 6.35 mm, and a neutral rake geometry. It is installed and changed out by machinists and CNC operators in production and job-shop environments.

This insert is suited for grooving external diameters in ferrous and non-ferrous materials where tight groove width tolerances are required. The right-hand orientation and 3-degree lead angle make it appropriate for standard OD grooving setups on conventional and Swiss-style turning equipment. The insert size designation is 4189, seating into size-4 Top Notch toolholders. It is not a multi-use or full-radius insert. Typical applications include part-off grooves, snap-ring grooves, and undercut profiles on medium to high production runs.

Key Features

• KC5010 grade solid carbide with PVD TiAlN coating for extended tool life in steel and cast iron
• 4.8 mm cutting width with a corner radius of 0.57 mm for controlled groove geometry
• Maximum depth of cut of 6.35 mm, rated for depth-of-cut range of 5.00 mm to 10.00 mm
• Neutral rake geometry for balanced cutting forces in right-hand grooving
• 55-degree included angle and 3-degree lead angle for precise entry into groove profiles
• Top Notch series seat size 4 for direct replacement in compatible Top Notch toolholding systems

Compatibility

Designed for use in Top Notch series size-4 insert seat toolholders. MSC and manufacturer cross-reference number is NG4189R/L. Verify toolholder seat size and insert orientation before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist following the toolholder manufacturer torque and clamping guidelines. Power down and lock out the spindle before changing inserts. Inspect the insert pocket and clamping mechanism for debris or wear before seating the new insert. Do not exceed the rated maximum depth of cut for the insert grade and workpiece material combination.
