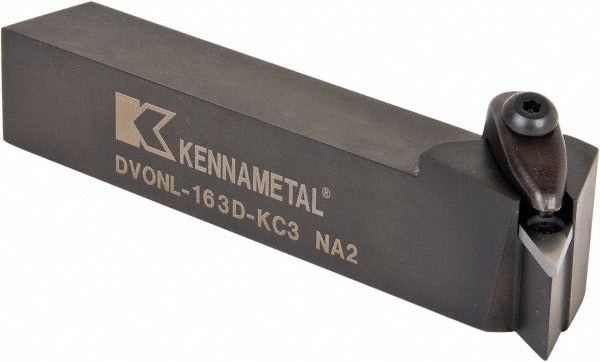

Kennametal 2504009 Left Hand Dvon Turning Toolholder

Product Description

The KENNAMETAL 2504009 is a left-hand DVON-style indexable turning toolholder built for negative rake machining operations. Part of the Kennametal Kenclamp series, it accepts VN..33 series inserts secured by a clamp-style insert holding method. The toolholder features a 1 inch by 1 inch steel shank with an overall length of 6 inches and a head length of 1.47 inches. With a rake angle of -6.4 degrees and a 17.5-degree lead angle, this holder is suited for turning applications where controlled chip formation and edge stability are priorities. Installed by CNC machinists and toolroom technicians, it is a purpose-built OEM-style component for production and job shop turning centers.

This toolholder is designed for use on manual and CNC turning lathes in both production and job shop environments. The left-hand orientation suits specific tool post positions and turning directions, typically used for back-turning or specific finishing pass configurations. The Kenclamp insert retention system provides secure clamping of VN..33 compatible inserts, with the insert inscribed circle measuring 0.375 inches (3/8 inch). No coolant-through capability is present on this holder, so external coolant delivery should be planned accordingly during setup.

Key Features

• Left-hand DVON toolholder style for specific turning orientations
• Negative rake angle of -6.4 degrees for controlled cutting geometry
• Kenclamp insert holding method for secure, repeatable insert seating
• Accepts VN..33 series inserts with a 0.375 inch inscribed circle
• 1 inch x 1 inch steel shank for rigid setup on standard tool posts
• No coolant-through — compatible with external coolant delivery setups

Compatibility

Compatible with VN..33 series indexable inserts (complete insert compatibility: VN.. 332). Designed as an OEM-style Kenclamp series toolholder for use on turning lathes accepting a 1 inch x 1 inch shank profile.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Power down the lathe and confirm the spindle is fully stopped before mounting or removing the toolholder. Secure the shank firmly in the tool post to the machine manufacturer's specified clamping torque. Verify insert seating and clamp integrity before resuming cutting operations.
