Kennametal 2425869 Turning Insert WNMG332MS KC5010

Product Description

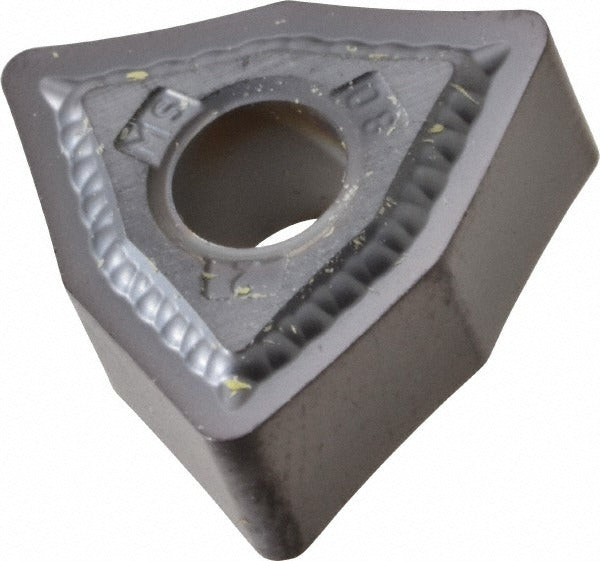

The KENNAMETAL 2425869 is a solid carbide turning insert with ANSI designation WNMG332MS and ISO designation WNMG060408, offered in the KC5010 grade with a PVD-applied TiAlN coating. It features an 80-degree trigon (W) shape, a neutral hand orientation, and a negative rake and side clearance geometry. The inscribed circle measures 3/8 inches, the corner radius is 1/32 inches, and the insert thickness is 3/16 inches. With six available cutting edges and an MS chip breaker geometry optimized for roughing and medium machining operations, this insert is suited for demanding material removal applications in production turning environments.

This insert is designed for turning, facing, and boring operations on steel, stainless steel, cast iron, superalloys, and titanium workpieces. The KC5010 grade delivers high wear resistance with moderate toughness, making it appropriate for ISO material groups P, M, K, N, and S. It is a strong fit for CNC turning centers and engine lathes running aggressive or interrupted cuts where tool life and edge stability are priorities. The MS chip breaker supports controlled chip formation across a range of depths and feed rates within the roughing and medium machining envelope.

Key Features

• KC5010 grade with PVD TiAlN coating for high wear resistance in steel and stainless steel
• WNMG332MS geometry with 80-degree trigon shape and negative rake for rigid, stable cuts
• Six cutting edges per insert for extended tool life per unit cost
• MS chip breaker rated for roughing and medium machining applications
• Compatible with clamp and pin insert holding methods per KENLOC series toolholders
• Conforms to ANSI and ISO insert standards for broad toolholder compatibility

Compatibility

Designed for use in KENLOC series toolholders accepting WNMG332 inserts held by clamp or pin methods. Confirmed compatible with ISO material groups P, M, K, N, and S workpiece materials.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Power down and de-energize the machine tool before indexing or replacing inserts. Use the appropriate torx or clamp screw driver specified by the toolholder manufacturer to secure the insert without over-torquing the clamping mechanism. Inspect the insert seat and chip pocket for debris before seating a new cutting edge, and verify secure clamping before resuming any cutting operation.
