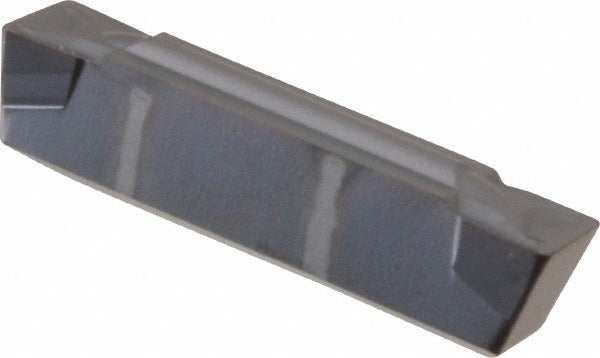

Kennametal 2275083 Grooving Insert KC5010 Tialn 4.76mm

Product Description

The KENNAMETAL 2275083 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. Coated with TiAlN via a PVD process, this insert delivers strong wear resistance and thermal stability across a range of workpiece materials. It carries the KC5010 manufacturer grade and features a neutral hand orientation, a 4.76 mm (0.1874 inch) cutting width, and a maximum depth of cut of 3.5 mm (0.1378 inch). The GMN chip breaker geometry promotes controlled chip formation and evacuation during grooving passes. Machinists and CNC operators working in production turning environments are the primary installers of this insert.

This insert is suited for grooving applications in both light and medium-duty production turning on materials aligned with C3 and C4 material grades. The A4 series designation and insert seat size 4 make it compatible with A4-style grooving toolholders. The neutral hand orientation allows use in standard grooving configurations without requiring a dedicated left- or right-hand holder. It is applicable in job shop and high-volume production settings where consistent groove geometry and surface finish are required. The full radius designation is No, meaning this insert produces a flat-bottomed groove profile with a corner radius of 0.40 mm (0.0157 inch).

Key Features

• KC5010 grade solid carbide construction with TiAlN PVD coating for extended tool life
• 4.76 mm (0.1874 inch) cutting width for precise groove sizing
• Maximum depth of cut 3.5 mm (0.1378 inch); rated depth-of-cut range 3.00 to 4.00 mm
• GMN chip breaker geometry for controlled chip flow during grooving
• Neutral hand orientation compatible with standard A4-series grooving toolholders
• Corner radius of 0.40 mm (0.0157 inch) for controlled groove corner geometry
• Multi-use tool designation supports use across varied grooving applications

Compatibility

Designed for use with A4-series grooving toolholders, insert seat size 4. The manufacturers catalog number A4G187I04P1GMN may be used to cross-reference compatible toolholder systems. No additional specific model compatibility data was provided in the product input.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist or CNC tooling technician with the machine in a full stop and locked-out condition before handling the toolholder. Seat the insert securely into the toolholder pocket and verify clamping torque per the toolholder manufacturers specification. Inspect the insert seat for chips or debris before seating to avoid incorrect seating angles that can cause premature edge failure. Handle carbide inserts with care to avoid chipping the cutting edge prior to use.
