Kennametal 2249717 ER40 Collet Chuck CAT50 Taper Shank

Product Description

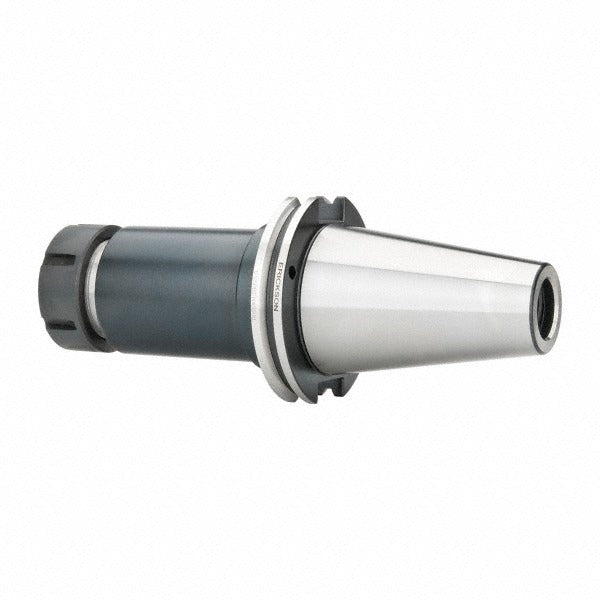

The KENNAMETAL 2249717 is an ER40 collet chuck with a CAT50 taper shank, designed for CNC machining centers and milling applications requiring a rigid, high-accuracy tool-holding solution. It accepts ER40 collets with a capacity range of 3.05 mm (0.120 inches) to 26 mm (1.024 inches), covering a wide range of cutting tool shank sizes. The chuck features a 6-inch projection from gauge line and an overall length of 10 inches, making it suited for operations that require extended reach. Through-spindle and DIN flange coolant delivery is supported, directing coolant directly to the cutting zone for improved chip evacuation and tool life. The actuator type is wrench, and the chuck is balanced to 12,000 RPM for stable operation at high spindle speeds. Installation and setup are performed by machining center operators and toolroom technicians.

This collet chuck is used in vertical and horizontal CNC machining centers equipped with CAT50 spindle interfaces. The 6-inch projection makes it appropriate for deep-pocket milling, cavity work, or setups where clearance between the spindle nose and the workpiece or fixture is required. Through-coolant capability is particularly useful in applications involving aluminum, steel, or cast iron where heat management and chip control are critical. The ER40 collet system is a widely adopted standard, giving this chuck broad utility across production and job-shop environments.

Key Features

• ER40 collet system with capacity range of 3.05 mm to 26 mm (0.120 to 1.024 inches)
• CAT50 taper shank for direct mounting in CAT50 spindle interfaces
• 6-inch projection and 10-inch overall length for extended-reach applications
• Through-spindle and DIN flange coolant delivery for direct coolant-to-cutting-zone access
• Balanced to 12,000 RPM for high-speed machining stability
• Wrench-actuated collet nut with 62.99 mm (2.480 inches) collet nut diameter

Compatibility

Designed for use with CAT50 spindle-interface machining centers and standard ER40 collets. Coolant compatibility includes through-spindle and DIN flange coolant systems.
