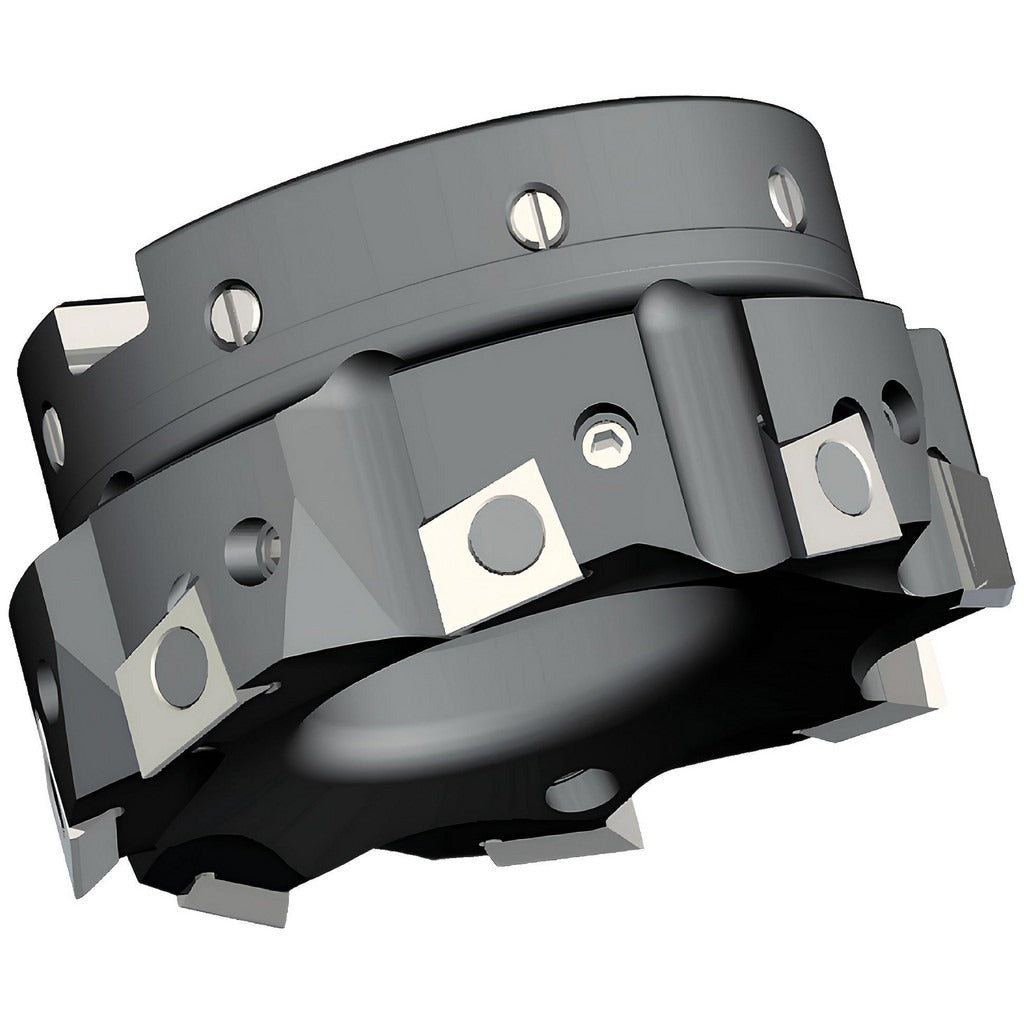

Kennametal 2235053 Square-shoulder Face Mill 2.5 in

Product Description

The KENNAMETAL 2235053 is an indexable square-shoulder face mill designed for precision milling operations in metalworking environments. Part of the Fix-Perfect series, this right-hand cutting tool accepts three BGHX 15L5 style inserts held by clamp and delivers a maximum cutting diameter of 2.5 inches (63.50 mm) with a maximum depth of cut of 0.394 inches. The 0/90 degree lead angle combined with a positive 24-degree rake angle promotes efficient chip formation and clean shoulder profiles. Licensed machinists and CNC operators use this cutter on horizontal and vertical machining centers where accurate square shoulders and face finishing are required.

This face mill is suited for production and job-shop environments running ferrous and non-ferrous materials where square-shoulder milling is required. The Fix-Perfect series is engineered for stable insert seating and repeatable positioning across multiple insert changes, making it appropriate for both high-volume production runs and precision one-off work. The 3/4-inch arbor hole diameter fits standard arbor and shell mill adapter tooling common to most machining centers and knee mills.

Key Features

• 2.5-inch maximum cutting diameter for medium-scale face and shoulder milling
• 0/90 degree lead angle produces true 90-degree square shoulders in a single pass
• Positive 24-degree rake angle reduces cutting forces and promotes efficient chip evacuation
• Accepts three BGHX 15L5 style inserts with clamp-style holding for rigid, repeatable seating
• Fix-Perfect series design ensures consistent insert indexing and positioning
• Right-hand cutting direction compatible with standard spindle rotation on most machining centers

Compatibility

Designed for use with BGHX 15L5 style inserts. Fits toolholders and shell mill adapters with a 3/4-inch arbor hole. Verify arbor and adapter specifications against machine tool requirements before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before mounting or changing the cutter body or inserts. Ensure the arbor or shell mill adapter is clean and free of debris before seating the cutter, and torque the arbor retention hardware according to the machine tool manufacturer specifications. Inspect insert seats and clamp screws for wear or damage each time inserts are indexed or replaced.
