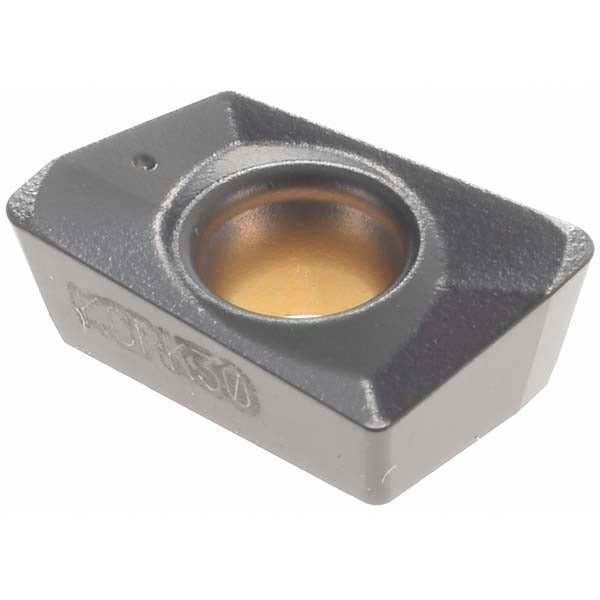

Kennametal 2209969 Milling Insert ADKT1035PDERLC KCPK30

Product Description

The KENNAMETAL 2209969 is a solid carbide milling insert identified by ISO code ADKT1035PDERLC and manufactured to the KCPK30 grade. It features a parallelogram insert shape with an 85-degree included angle and a right-hand cutting orientation. The insert carries a CVD-applied multilayer coating of TiN, TiCN, and Al2O3, providing wear resistance and thermal stability during interrupted and continuous milling operations. With a 15-degree relief angle and a 7-degree rake angle, it is engineered for productive metal removal in face milling and shoulder milling applications. Licensed machinists and CNC setup technicians install this insert into compatible screw-retained toolholders.

This insert is designed for milling steel, stainless steel, cast iron, and superalloys including titanium-based materials, corresponding to ISO material groups P, M, K, and S. It suits both roughing and semi-finishing passes on machining centers and milling machines operating in job shop and production environments. The LC chip breaker geometry promotes controlled chip formation across these material groups, reducing cutting forces and minimizing built-up edge.

Key Features

• KCPK30 grade solid carbide substrate with CVD TiN, TiCN, and Al2O3 multilayer coating
• LC chip breaker geometry for controlled chip evacuation across diverse workpiece materials
• Right-hand cutting orientation with 15-degree relief angle and 7-degree rake angle
• 0.0315-inch (0.80 mm) corner radius for edge strength and surface finish consistency
• Screw-retained insert holding method for positive seating and repeatable indexing
• Compatible with ISO material groups P, M, K, and S workpiece materials

Compatibility

Designed for use in screw-retained milling toolholders accepting ADKT series inserts with a 1622 insert size code. Suitable for face milling and shoulder milling operations on steel, stainless steel, cast iron, and superalloys including titanium alloys.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and all energy is locked out before indexing or replacing inserts. Seat the insert fully against the pocket walls and tighten the clamping screw to the toolholder manufacturer's specified torque using the correct Torx or hex key. Inspect the insert pocket and clamping screw for wear or damage before each installation.
