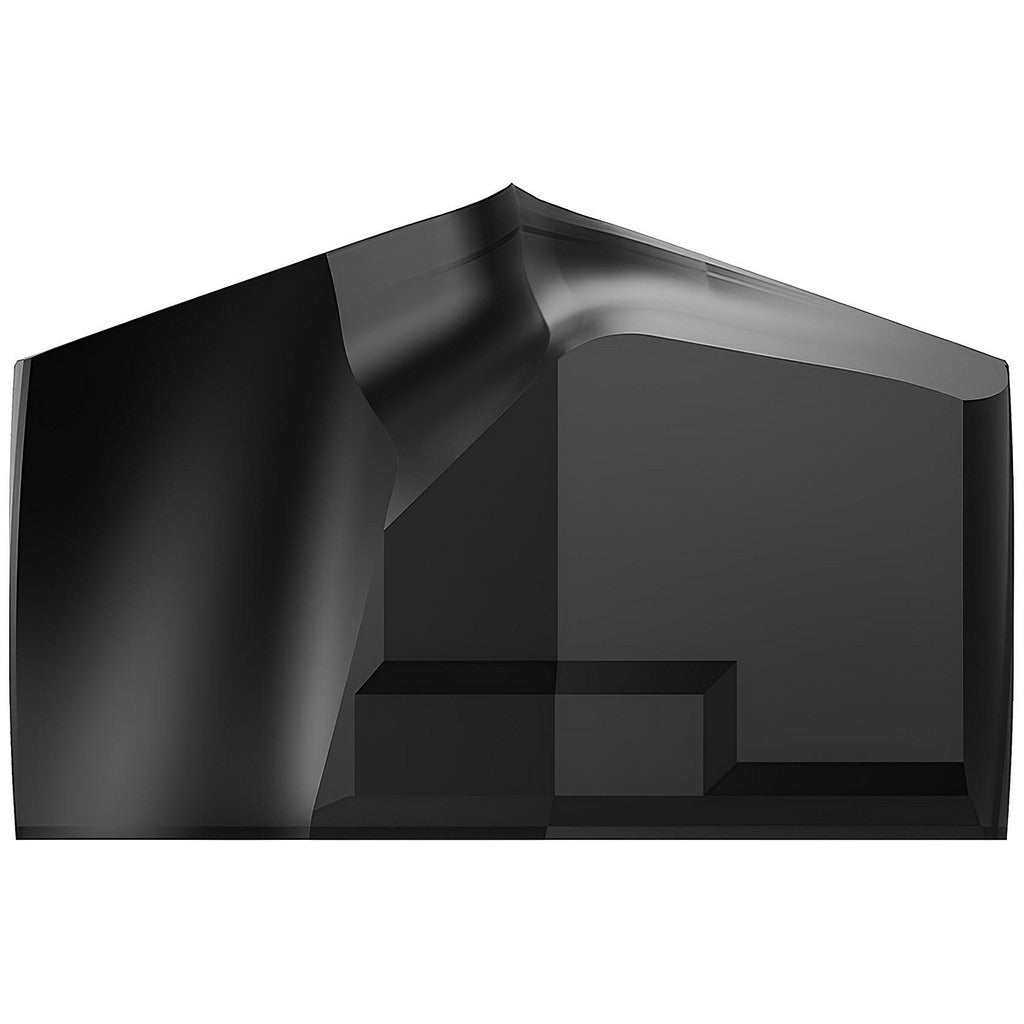

Kennametal 2047424 Replaceable Drill Tip 0.781in KC7315

Product Description

The KENNAMETAL 2047424 is a replaceable drill tip in the KSEM modular drilling system, designed for high-productivity hole-making in steel and similar P-category workpiece materials. Built from fine-grain solid carbide and coated with TiAlN via a PVD process, this tip delivers heat resistance and edge retention under demanding cutting conditions. The 140-degree point angle and HP insert geometry are suited for maintaining accuracy during entry and exit. With a cutting diameter of 0.781 inches (19.84 mm) and a functional length of 0.391 inches, this tip seats into a size 2 KSEM holder and is held in place by a clamp mechanism. Installation and replacement are performed by machinists and toolroom technicians working on CNC drilling operations.

This drill tip is intended for use in KSEM modular drill bodies with a size 2 insert seat. It performs in applications that include standard drilling, inclined surface exit drilling, and stacked-plate drilling. The regular spiral with helical flutes and 2-flute, 2-margin geometry supports chip evacuation and bore quality in steel workpieces. It does not include coolant-through capability, making it best suited for external coolant or flood coolant setups.

Key Features

• Fine-grain solid carbide construction for rigidity and edge retention
• TiAlN PVD coating for thermal resistance in steel cutting
• 140-degree point angle with HP geometry for controlled entry and exit
• Helical flutes with 2-flute, 2-margin design for chip management and bore finish
• Compatible with inclined exit and stacked-plate drilling applications
• Clamp-held insert mounting for repeatable tip positioning in the KSEM holder

Compatibility

Designed for use with KSEM modular drill bodies requiring an insert seat size 2. Suitable for P-category primary workpiece materials, principally steel. No coolant-through capability; external or flood coolant is required.

Installation Notes

Installation and tip changes should be performed by qualified machinists or toolroom personnel with the machine powered down and the spindle locked. Use the appropriate KSEM clamp key to seat and secure the tip fully before resuming operation. Inspect the insert seat for wear or debris before seating a new tip. Follow the toolholder manufacturer guidelines for clamping torque and runout verification after each tip change.
