Kennametal 1952701 Grooving Insert G305GMN KC5025 Carbide

Product Description

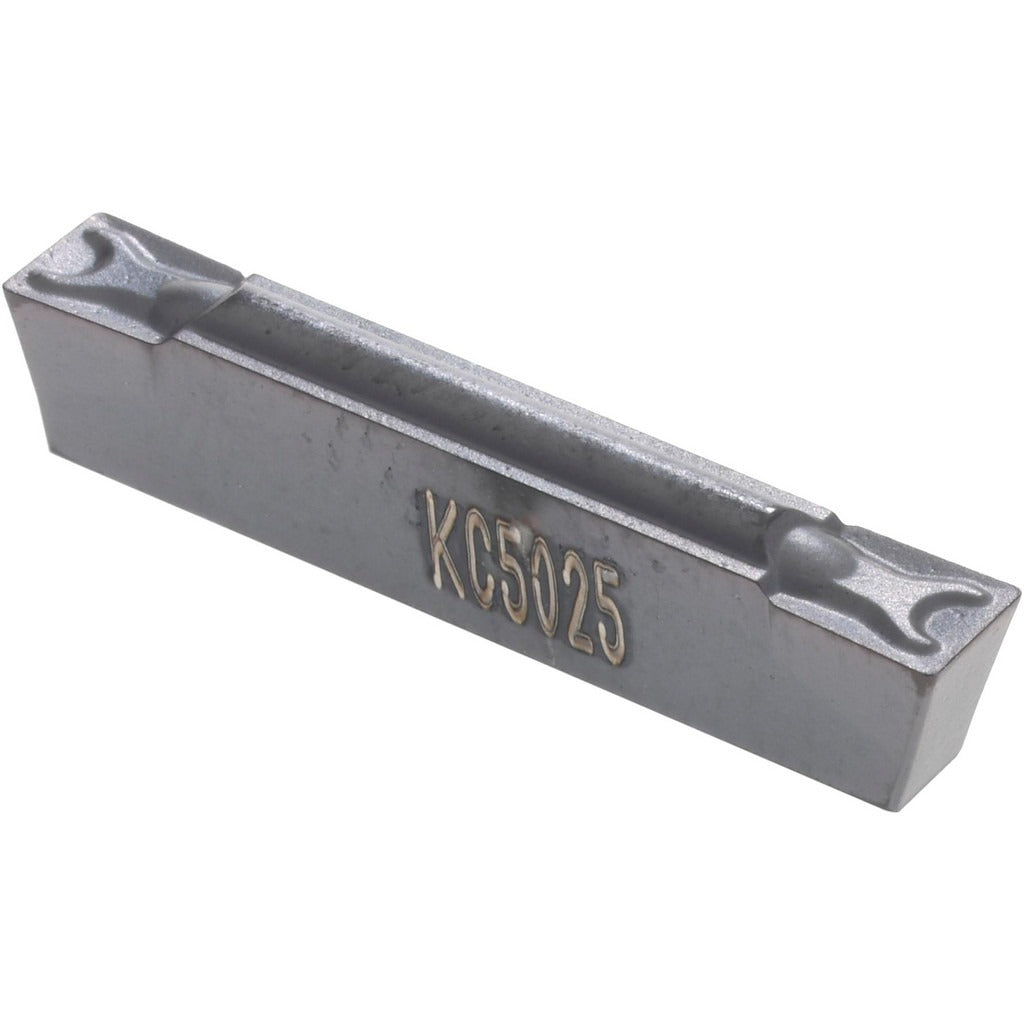

The KENNAMETAL 1952701 is a solid carbide grooving insert designed for precision groove turning and parting operations on CNC lathes and turning centers. It carries the G305GMN chipbreaker geometry and KC5025 grade designation, with a TiAlN coating applied via PVD process for enhanced wear resistance and thermal stability at elevated cutting speeds. The insert has a neutral hand orientation, a cutting width of 3.05 mm (0.1201 inches), and a maximum depth of cut of 3.50 mm (0.1378 inches). It belongs to the Series A4 platform and is suited for machinists and toolroom professionals working in production or job-shop turning environments.

This insert is applied in external and internal grooving, recessing, and light parting operations on ferrous and non-ferrous workpiece materials. The GMN chipbreaker geometry promotes controlled chip formation across a range of feed rates, making it well-suited for both roughing and finishing groove passes. The KC5025 grade is commonly selected for interrupted cuts and applications requiring edge toughness combined with wear resistance. The insert fits turning toolholders designed for the Series A4 platform. The manufacturer catalog number is A4G0305M03U02GMN.

Key Features

• KC5025 carbide grade with TiAlN coating via PVD process for wear resistance and thermal protection
• GMN chipbreaker geometry for controlled chip evacuation during grooving operations
• 3.05 mm cutting width with a maximum depth of cut of 3.50 mm
• Neutral hand orientation for flexible setup on standard grooving toolholders
• Corner radius of 0.20 mm (0.0079 inches) for precise groove profile control
• Multi-use insert rated for Series A4 toolholder compatibility

Compatibility

Designed for use with Series A4 grooving toolholders. Manufacturer catalog reference number is A4G0305M03U02GMN. Verify toolholder seat and clamping system specifications before installation.

Installation Notes

Insert installation should be performed by a qualified machinist or toolroom technician with the machine spindle fully stopped and locked out per facility lockout/tagout procedures. Ensure the toolholder pocket and clamping surfaces are clean and free of chips or debris before seating the insert. Do not exceed the maximum depth of cut rating for this insert geometry. Torque clamping screws only to the toolholder manufacturer specifications — do not estimate or exceed stated values.
