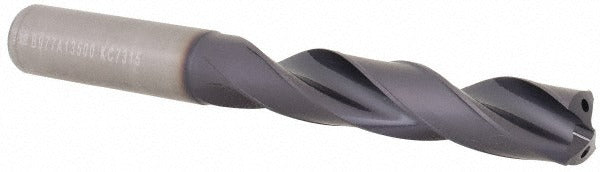

Kennametal 1913601 Solid Carbide Jobber Drill 13.50 Mm

Product Description

The KENNAMETAL 1913601 is a solid carbide jobber-length drill bit designed for high-performance hole-making in demanding production environments. It measures 13.50 mm (0.5315 inches) in diameter with a 140-degree split point angle and a TiAlN coating that extends tool life in abrasive and high-heat cutting conditions. The web-thinned geometry reduces thrust force at entry and promotes cleaner chip evacuation. With an overall length of 124.00 mm (4.8819 inches) and a flute length of 77.00 mm (3.0315 inches), it handles drilling depths up to 60.00 mm (2.3622 inches). This drill is built for machinists, toolroom operators, and CNC production facilities running tight-tolerance work.

This drill bit is rated for use in steel, stainless steel, cast iron, aluminum, and non-ferrous materials, making it a versatile choice across a wide range of production and job-shop applications. The straight cylindrical shank at 14 mm (0.5512 inches) in diameter and 45 mm (1.7717 inches) in length fits standard drill chucks and collet holders. The coolant-through design supports internal coolant delivery systems, which is particularly useful when drilling stainless steel or deep-hole applications where heat buildup is a concern. This bit conforms to DIN 6537L specification, which defines geometry and dimensional tolerances for solid carbide jobber drills.

Key Features

• Solid carbide construction with TiAlN coating for extended tool life in abrasive materials
• 140-degree standard point angle with web-thinning reduces entry thrust and improves chip flow
• Coolant-through design supports internal coolant delivery for deep-hole and high-heat applications
• Right-hand cutting, regular spiral flute for consistent chip evacuation
• Straight cylindrical shank compatible with standard drill chucks and collet holders
• Conforms to DIN 6537L specification with a diameter tolerance of +0.007 to +0.025 mm

Compatibility

Designed as a DIN 6537L-compliant solid carbide jobber drill suitable for use in CNC machining centers, drill presses, and production drilling equipment equipped with coolant-through spindle capability or standard chuck retention. Compatible workpiece materials include steel, stainless steel, cast iron, aluminum, and non-ferrous alloys.

Installation Notes

Installation and use of this tool should be performed by qualified machinists or toolroom technicians familiar with carbide tooling. Ensure spindle runout is within acceptable limits before mounting, as solid carbide is more brittle than high-speed steel and susceptible to breakage under lateral loading. Confirm the tool holder or collet is rated for the 14 mm shank diameter. When using the coolant-through feature, verify that coolant pressure and flow rate are appropriate for the workpiece material and drilling depth before beginning the operation.
