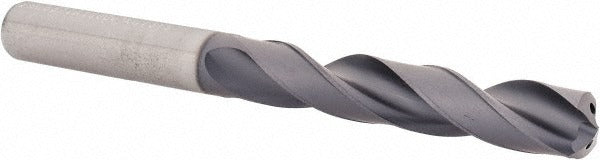

Kennametal 1913589 Solid Carbide Jobber Drill 10 Mm

Product Description

The KENNAMETAL 1913589 is a solid carbide jobber-length drill bit with a TiAlN coating, designed for high-performance drilling in demanding production environments. It runs a 10.00 mm diameter with a 140-degree split point geometry and web-thinned tip to reduce thrust and improve self-centering at entry. The straight cylindrical shank measures 10 mm in diameter and 1.5748 inches in length, fitting standard drill chucks and collet holders. Right-hand cutting with a regular spiral flute, this drill is built for machinists, toolroom technicians, and CNC operators who need consistent hole quality at production feed rates. Overall length is 4.0551 inches.

This drill is suited for machining steel, stainless steel, cast iron, aluminum, and other non-ferrous materials in both manual and CNC machine tool applications. The TiAlN coating provides oxidation resistance and thermal hardness retention, making it effective in dry or minimal-lubrication cutting conditions. Coolant-through capability supports high-speed deep-hole cycles where chip evacuation and heat management are critical. It conforms to DIN 6537L specification, a standard commonly referenced in precision metalworking and toolroom environments. Typical applications include component drilling in job shops, aerospace fabrication, and general metalworking production.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• TiAlN coating for elevated thermal resistance and extended tool life in steel and stainless applications
• 140-degree point angle with web-thinned geometry reduces entry thrust and improves centering
• Coolant-through design supports chip evacuation in deep-hole drilling cycles
• Regular spiral flute with parallel web configuration for consistent chip flow
• Conforms to DIN 6537L specification for dimensional consistency

Compatibility

Designed as an OEM-style jobber drill conforming to DIN 6537L, compatible with standard drill chucks and collet holders accepting a 10 mm straight cylindrical shank. Rated for use in steel, stainless steel, cast iron, aluminum, and non-ferrous workpiece materials per published attribute data.

Installation Notes

Installation and use should be performed by qualified machinists or toolroom technicians familiar with CNC and manual drilling operations. Ensure the machine spindle and workholding are fully secured before engaging the drill. Verify coolant-through supply is active when using this drill in deep-hole applications to prevent chip packing and heat buildup. Inspect the cutting edges for wear or chipping before each use, as carbide tools are brittle and should not be used if the tip shows visible damage.
