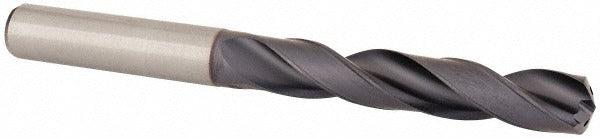

Kennametal 1913588 Solid Carbide Jobber Drill 9.80 Mm Tialn

Product Description

The KENNAMETAL 1913588 is a solid carbide jobber-length drill bit designed for high-performance hole-making in demanding materials including steel, stainless steel, cast iron, and aluminum. It carries a TiAlN coating that extends tool life under elevated cutting temperatures. The drill features a 140-degree point angle with web thinning for improved centering and reduced thrust on entry. With an overall length of 4.0551 inches and a flute length of 2.4016 inches, it delivers consistent chip evacuation in production drilling applications. This tool is installed and used by machinists, toolroom technicians, and maintenance professionals working with CNC machining centers, drill presses, and hand-held drill equipment.

The 1913588 suits a wide range of metalworking applications including structural fabrication, maintenance repair, and precision machining operations. It is dimensioned to DIN 6537L specification, making it a standard jobber-length format recognized in industrial and job-shop environments. Coolant-through capability supports deep-hole and high-feed drilling cycles, particularly in steel and stainless steel where heat buildup is a concern. Maximum drilling depth is 1.9291 inches. The straight cylindrical shank with a diameter of 0.3937 inches fits standard drill chucks and collet holders without modification.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous and non-ferrous materials
• TiAlN coating provides thermal protection and extends tool life in high-speed cutting conditions
• 140-degree point angle with web-thinned, parallel-web geometry reduces entry thrust and improves centering
• Coolant-through design supports chip flushing and thermal management during deep drilling cycles
• Right-hand cutting, regular spiral flute for consistent chip evacuation in CNC and manual applications
• Conforms to DIN 6537L specification for standardized jobber-length dimensions

Compatibility

Designed as an OEM-style solid carbide jobber drill conforming to DIN 6537L. Suitable for use in standard drill chucks and collet holders accepting a 10 mm straight cylindrical shank. Intended for drilling steel, stainless steel, cast iron, and aluminum and non-ferrous materials.

Installation Notes

Installation and use should be performed by qualified machinists or tool operators familiar with speeds, feeds, and clamping requirements for solid carbide cutting tools. Ensure the workpiece is securely fixtured and the drill is properly seated in the chuck or collet before operation. Carbide drills are brittle relative to high-speed steel and must not be used in setups with excessive runout or vibration. When using coolant-through capability, verify coolant pressure and flow are compatible with the spindle and toolholder being used.
