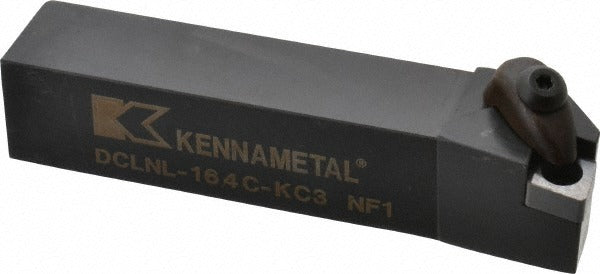

Kennametal 1875135 Lh Dcln Indexable Turning Toolholder

Product Description

The KENNAMETAL 1875135 is a left-hand DCLN-style indexable turning toolholder designed for negative-rake external turning operations on CNC lathes and manual turning centers. Built on the Kenclamp series platform, it features a 1 inch x 1 inch square steel shank and an overall length of 5 inches, with a head length of 1.25 inches. The clamp-style insert holding method provides rigid, repeatable seating for CN..43. style inserts with a 0.5 inch inscribed circle. This toolholder is installed and set up by machinists and CNC turning specialists in production and job-shop environments.

The 1875135 is suited for external longitudinal turning and facing operations where a left-hand approach angle is required. The 5-degree lead angle promotes chip flow and surface finish consistency on steel, cast iron, and similar workpiece materials. The Kenclamp clamping system accommodates CN..43. series inserts, specifically the CN.. 432 family, offering broad cutting geometry options within a single holder body. This toolholder is appropriate for both light-duty finishing and moderate roughing cuts within its shank size class.

Key Features

• Left-hand DCLN toolholder style for external turning with negative-rake insert geometry
• Kenclamp series clamp-style insert retention for secure, repeatable insert indexing
• Accepts CN..43. inserts with 0.5 inch inscribed circle, complete compatibility with CN.. 432 inserts
• 1 inch x 1 inch square steel shank with 5 inch overall length
• 5-degree lead angle supports efficient chip evacuation and surface finish control
• No coolant-through feature; standard external coolant application

Compatibility

Designed for use with CN..43. style indexable inserts, specifically the CN.. 432 insert family, as specified by the manufacturer. Fits standard tool blocks and turrets accepting a 1 inch x 1 inch square shank.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the lathe turret or tool block is powered down and the spindle is locked before mounting or adjusting the toolholder. Verify insert seating and clamp torque per the insert manufacturer's clamping guidelines before taking any cut. Inspect the clamp screw and insert pocket for wear or debris at each insert change.
