Kennametal 1819357 Turning Insert VNMG331FP KT315 Cermet

Product Description

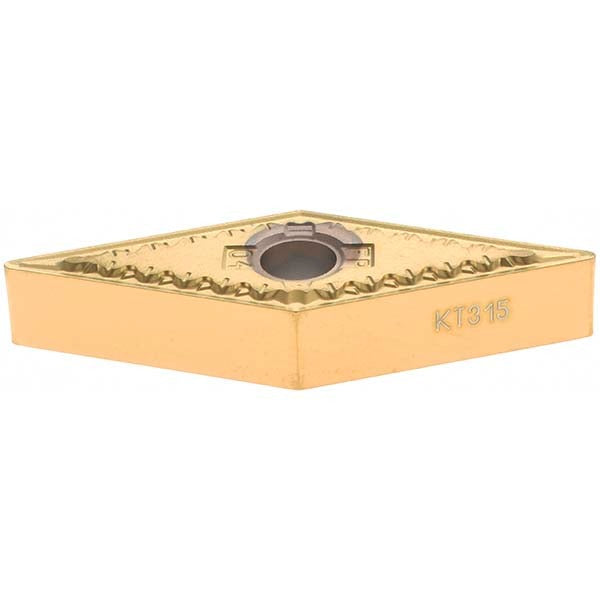

The KENNAMETAL 1819357 is a VNMG331FP turning insert in grade KT315, manufactured from cermet substrate with a multilayer PVD coating of TiN, TiCN, and TiN. It carries a 35-degree diamond (rhombic) shape, a neutral hand orientation, and a 1/64-inch corner radius suited for finishing operations. The insert measures 16.61 mm (approximately 0.654 inches) in length with a 3/8-inch inscribed circle and a 3/16-inch thickness. Four cutting edges are available per insert. It is installed by machinists and toolroom technicians in CNC turning centers and manual lathes using clamp or pin holding methods.

This insert is designed for finishing passes on steel, stainless steel, and cast iron workpieces, corresponding to ISO material groups P, M, and K. Its FP chip breaker geometry controls chip flow during light-to-moderate finishing cuts, with a maximum depth of cut of 0.0492 inches (1.25 mm). Typical applications include turning, facing, boring, back turning, and back boring operations. The KT315 cermet grade delivers high wear resistance across all three primary workpiece material categories, making it well suited for production environments where consistent surface finish and dimensional accuracy are required.

Key Features

• KT315 cermet grade with multilayer PVD TiN/TiCN/TiN coating for high wear resistance on steel, stainless steel, and cast iron
• FP chip breaker optimized for finishing operations with controlled chip flow
• 35-degree diamond (rhombic) insert shape provides a sharp, low-cutting-force geometry
• Four usable cutting edges per insert for extended tool life
• Compatible with clamp and pin insert holding methods
• Conforms to ANSI insert code VNMG331 and ISO insert code VNMG160404

Compatibility

Designed for use in KENLOC series toolholders accepting VNMG331 or VNMG160404 geometry inserts with clamp or pin clamping. Verify toolholder pocket dimensions and clamping style before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist with the machine powered off and the spindle fully stopped. Use the appropriate torque wrench and seating tool specified by the toolholder manufacturer to seat the insert without rocking or forcing. Inspect the insert pocket and seating surfaces for chips or debris before seating a new insert edge. Follow facility lockout/tagout procedures before accessing the cutting zone.
