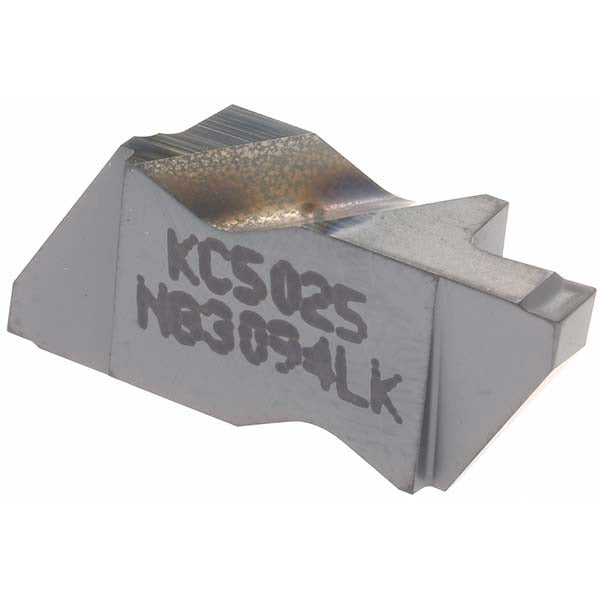

Kennametal 1818768 Grooving Insert NG3094K KC5025 Tialn

Product Description

The KENNAMETAL 1818768 is a solid carbide grooving insert designed for precision grooving operations on CNC lathes and turning centers. Manufactured to the NG3094K geometry in grade KC5025, this insert features a TiAlN coating applied via PVD process, delivering excellent wear resistance and thermal stability during interrupted and continuous cuts. It is configured for left-hand orientation with a 2.39 mm cutting width and a maximum depth of cut of 3.81 mm. A positive rake angle of 10 degrees and a K-style chip breaker promote controlled chip evacuation in a wide range of workpiece materials. Machinists and toolroom technicians working in production turning applications select this insert for consistent groove geometry and dimensional repeatability.

This insert fits within the Top Notch series tooling system and is suited for grooving, recessing, and light parting operations on ferrous and non-ferrous materials. The KC5025 grade, rated C2 and C6, is appropriate for applications where both toughness and coating-assisted surface protection are required. It is typically installed in a compatible Top Notch toolholder on manual or CNC turning equipment in job shops, production facilities, and maintenance machining environments.

Key Features

• Solid carbide substrate in grade KC5025 for wear resistance in grooving applications
• TiAlN coating via PVD process for thermal stability and extended tool life
• Left-hand orientation with 2.39 mm cutting width for precise groove sizing
• Maximum depth of cut of 3.81 mm suitable for shallow-to-medium grooving operations
• Positive rake angle of 10 degrees with K chip breaker for controlled chip flow
• Corner radius of 0.19 mm (0.0075 inches) for sharp, defined groove edges
• 55-degree included angle geometry; part of the Top Notch series system

Compatibility

Designed for use with Top Notch series compatible grooving toolholders that accept NG-style inserts with an NG3094 insert size designation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist following the toolholder manufacturer's torque and clamping procedures. Power down and lock out the machine spindle before changing inserts. Inspect the toolholder pocket for debris, wear, or damage prior to seating the new insert. Do not attempt to regrind or recoat this insert in the field.
