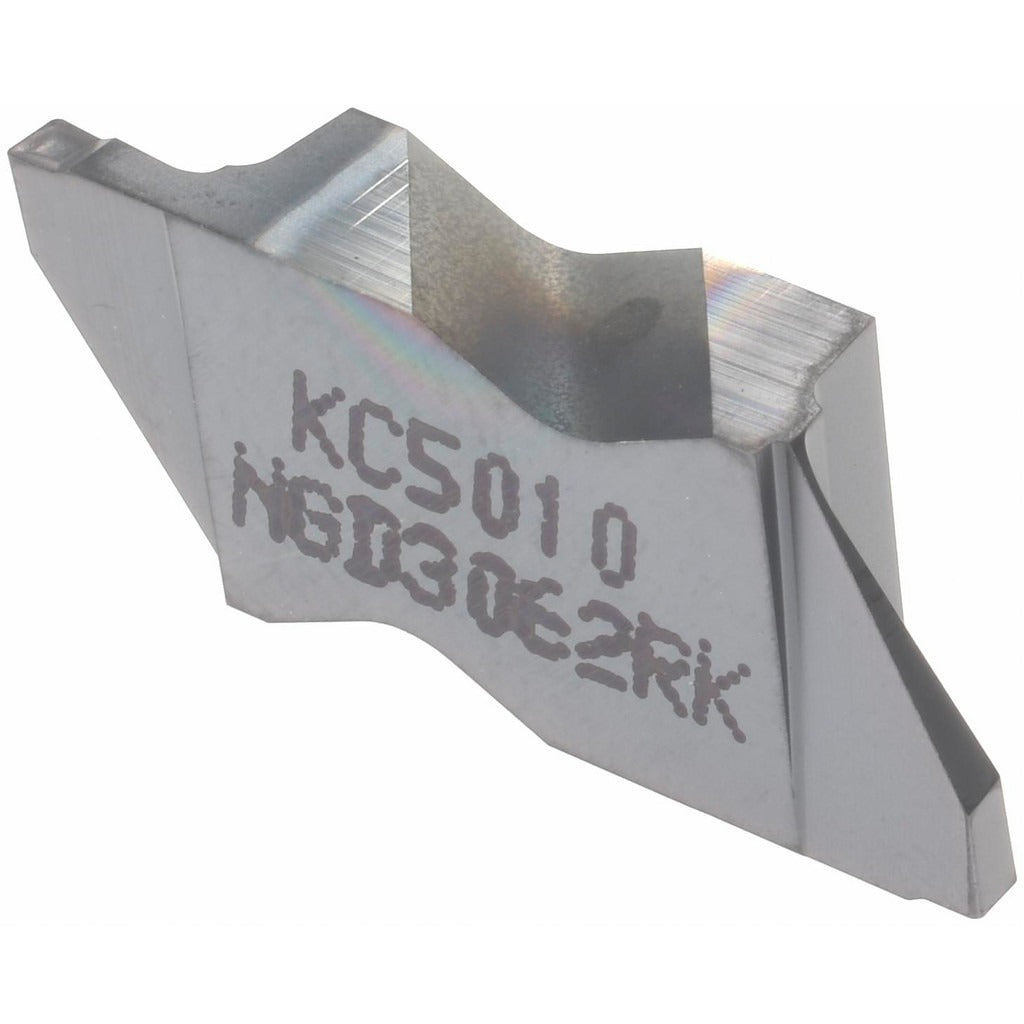

Kennametal 1818112 Grooving Insert NGD3062K KC5010 Carbide

Product Description

The KENNAMETAL 1818112 is a solid carbide grooving insert designed for precision external grooving and turning operations on CNC lathes and turning centers. It carries the NGD3062K designation within the Top Notch series and is finished with a PVD-applied TiAlN coating to resist heat and extend tool life in demanding cuts. The insert has a 1.58 mm cutting width, a maximum depth of cut of 3.18 mm, and a positive rake angle of 10 degrees that promotes clean chip flow. Right-hand orientation and a K-style chip breaker make it suitable for finishing and light-to-medium grooving passes. Licensed machinists and CNC operators install this insert in compatible Top Notch-style toolholders.

This insert is intended for grooving applications in metalworking environments where tight groove width tolerances and controlled chip formation are required. The KC5010 grade is a PVD-coated carbide grade suited for finishing and semi-finishing of steels and other materials. Material grade classification is C3 and C4. The 55-degree included angle and a corner radius of 0.19 mm (0.0075 inches) support precise profiling work in addition to standard grooving. It is a metric-measurement insert sized at 3062 and is not a full-radius style.

Key Features

• Solid carbide construction with PVD TiAlN coating for heat resistance and extended tool life
• 1.58 mm cutting width with a maximum depth of cut of 3.18 mm
• Positive 10-degree rake angle with K-style chip breaker for controlled chip evacuation
• Right-hand insert orientation for standard OD grooving setups
• 0.19 mm corner radius supports detail profiling alongside grooving operations
• Top Notch series compatibility for use with matched toolholding systems

Compatibility

Designed for use in Top Notch series toolholders compatible with NGD3062 insert geometry. Refer to toolholder documentation to confirm seat style and clamping compatibility before installation.

Installation Notes

Insert installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and all motion is locked out before changing inserts. Use the correct torque tool for the clamping screw as specified by the toolholder manufacturer. Inspect the toolholder seat for debris or damage before seating the insert to avoid micro-fracture during initial cuts.
