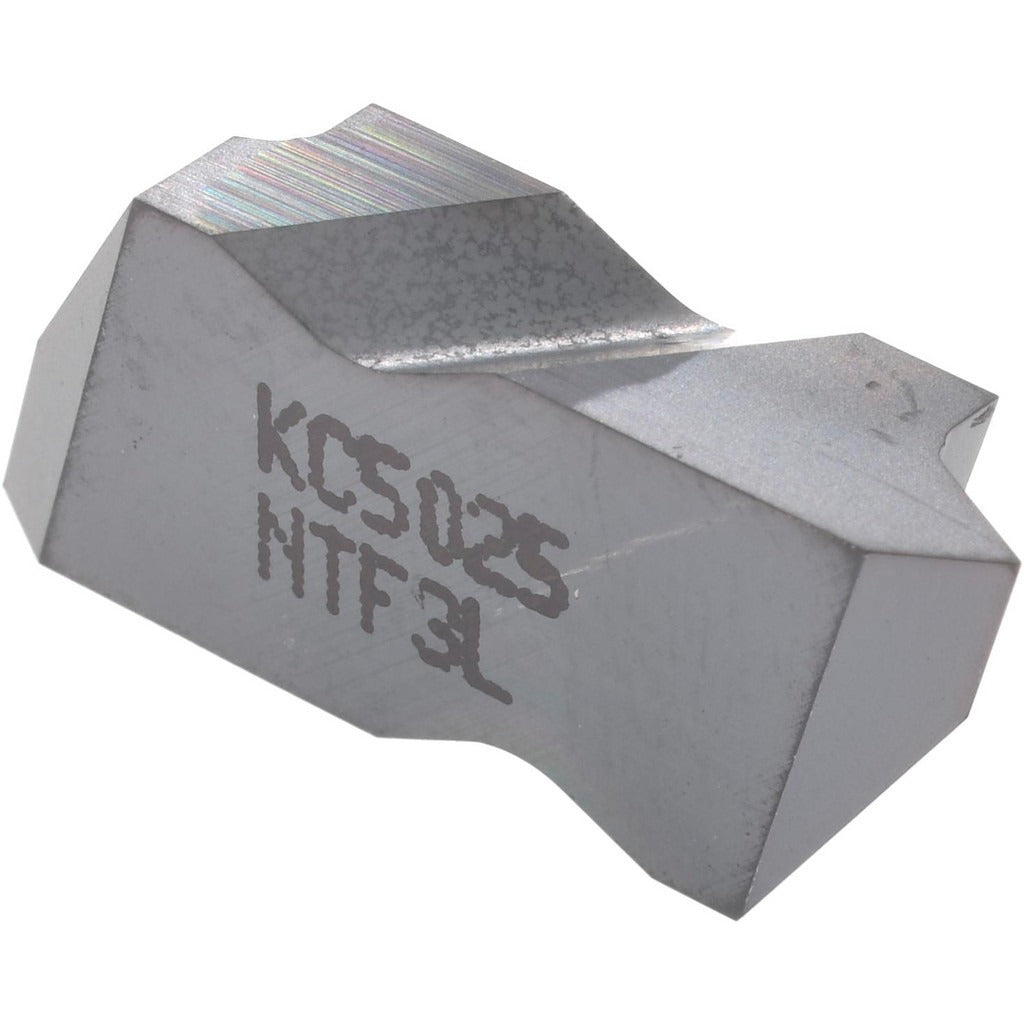

Kennametal 1795794 Threading Insert KC5025 Carbide

Product Description

The KENNAMETAL 1795794 is a left-hand carbide threading insert in the Top Notch series, designed for cutting both internal and external threads on metal workpieces. It carries the KC5025 manufacturer grade with a PVD-applied TiAlN finish, which provides wear resistance and thermal stability during threading operations. The insert conforms to a partial profile 60-degree thread standard and covers an external pitch range of 0.60 to 2.50 mm (10 to 44 TPI) and an internal pitch range of 1.00 to 2.50 mm (9 to 24 TPI). It is sized and toleranced for use in compatible Top Notch toolholders and is installed by machinists and CNC turning specialists in production and job-shop environments.

This insert is suited for threading operations on lathes and turning centers where left-hand thread geometry is required. It handles both internal and external thread profiles in a single insert style, making it a versatile choice for shops that run varied threading programs. The KC5025 grade with TiAlN coating is well matched to steel, alloy steel, and similar materials classified under material grades C2 and C6. It is commonly used in precision machining applications where consistent thread form and tool life are priorities.

Key Features

• KC5025 carbide grade with PVD TiAlN coating for enhanced wear resistance
• Partial profile 60-degree thread form for both internal and external threading
• Left-hand insert orientation for dedicated left-hand thread cutting
• External pitch range: 0.60 to 2.50 mm (10 to 44 TPI)
• Internal pitch range: 1.00 to 2.50 mm (9 to 24 TPI)
• Top Notch series insert style (NTF) for use with compatible toolholders

Compatibility

Designed for use with KENNAMETAL Top Notch series toolholders that accept size 3 NTF-style threading inserts. Confirm toolholder model and insert seat specifications before ordering.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before seating or removing the insert. Use the correct torque driver or clamp screw specified for the Top Notch toolholder to avoid insert movement or seat damage. Inspect the insert pocket and clamping components for wear or debris before installing a new insert.
