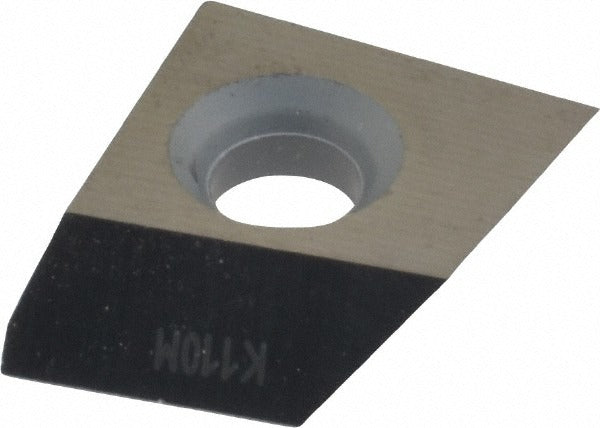

Kennametal 1794653 Milling Insert BGHX15L5PCTRGG K110M

Product Description

The KENNAMETAL 1794653 is a solid carbide milling insert designed for high-performance metal removal in milling operations. Carrying the ANSI and ISO designation BGHX15L5PCTRGG, this insert features an irregular shape with a 90-degree included angle, a positive rake angle of 30 degrees, and a T-Land cutting edge style. The uncoated, bright finish K110M carbide grade is engineered for direct contact cutting without a coating layer, making it well-suited for applications where edge sharpness and substrate hardness are priorities. It is installed by machinists and tooling technicians working with CNC or manual milling equipment.

This insert is rated for use in cast iron and non-ferrous metal workpiece materials, corresponding to material application codes K and N. It fits the Kennametal Fix-Perfect cutter series and is a single-sided, right-hand insert with two cutting edges. Typical install scenarios include facing, slotting, and profile milling operations where consistent depth of cut control is required. The GG chip breaker geometry supports chip management across a range of feed and speed conditions on compatible milling bodies.

Key Features

• Solid carbide K110M grade — uncoated bright finish for sharp, consistent cutting edges
• Positive rake angle of 30 degrees reduces cutting forces on the workpiece
• T-Land cutting edge style provides edge reinforcement during interrupted cuts
• Two cutting edges per insert on a single-sided design
• GG chip breaker geometry for controlled chip evacuation in cast iron and non-ferrous applications
• Right-hand orientation, screw-held mounting for secure clamping in Fix-Perfect bodies

Compatibility

Compatible with the Kennametal Fix-Perfect cutter series. Rated for cast iron and non-ferrous metal workpiece materials. ANSI and ISO code BGHX15L5PCTRGG applies to this insert geometry.

Installation Notes

Installation is performed by qualified tooling technicians or machinists. Always power down and lock out the machine spindle before changing or indexing inserts. Use the appropriate torx or hex key for the mounting screw and verify the insert seats flush against the pocket walls before re-engaging the cutter. Follow the milling body manufacturer's torque guidelines for insert clamping screws to avoid seat damage.
