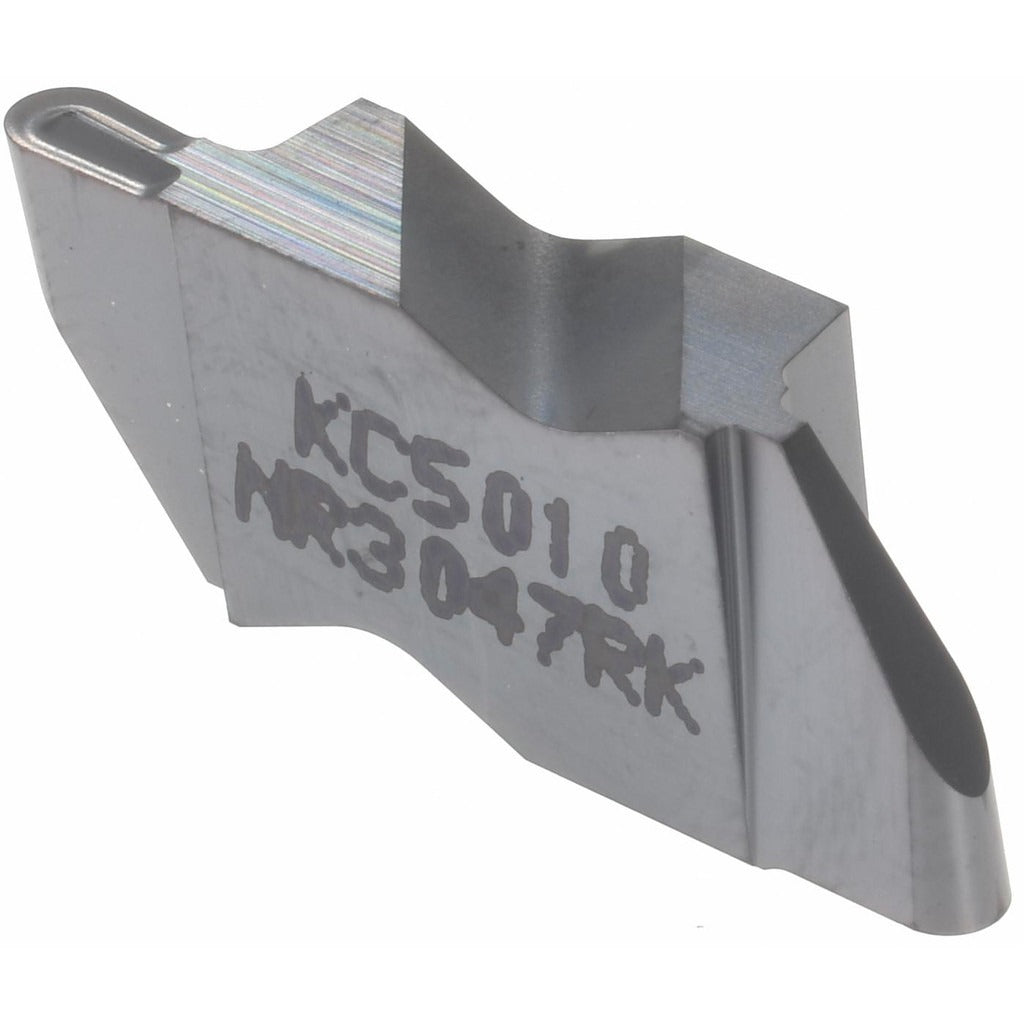

Kennametal 1792632 Grooving Insert KC5010 Carbide Tialn

Product Description

The KENNAMETAL 1792632 is a solid carbide grooving insert designed for precision grooving operations on CNC lathes and turning centers. Coated with TiAlN via a PVD process, this right-hand insert delivers wear resistance and thermal stability across a range of workpiece materials. It features a 2.39 mm cutting width and a maximum depth of cut of 3.81 mm, making it well suited for medium-depth grooving work. The KC5010 grade with a positive rake angle of 10 degrees and a K-style chip breaker promotes controlled chip flow. Licensed machinists, CNC operators, and toolroom technicians are the primary users of this insert.

This insert belongs to the Top Notch series and is sized at 3047, fitting toolholders designed for that insert family. It is appropriate for turning applications involving steel, cast iron, and similar materials within the C3 and C4 material grade range. The full-radius geometry with a corner radius of 1.19 mm supports smooth grooving passes. Typical applications include external grooving and parting on production turning equipment in both job-shop and high-volume manufacturing environments.

Key Features

• Solid carbide construction with PVD TiAlN coating for extended tool life
• 2.39 mm cutting width with a maximum depth of cut of 3.81 mm
• Full radius geometry with a 1.19 mm corner radius for smooth grooving
• Positive 10-degree rake angle with K-style chip breaker for controlled chip evacuation
• Right-hand insert orientation in Kennametal Top Notch series size 3047
• KC5010 grade suitable for C3 and C4 material classifications

Compatibility

Designed for use with Top Notch series toolholders accepting NR3047 inserts. Compatible with MSC/Manufacturer reference NR3047R/LK. Verify toolholder insert pocket specifications before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC toolroom technician with the machine powered down and the spindle locked. Use the correct torque wrench and clamp screw per the toolholder manufacturer's specification. Inspect the insert pocket for chips or debris before seating the insert. Do not exceed the rated maximum depth of cut for the insert size.
