Kennametal 1713359 Turning Insert VBGT220LF KC5010 Carbide

Product Description

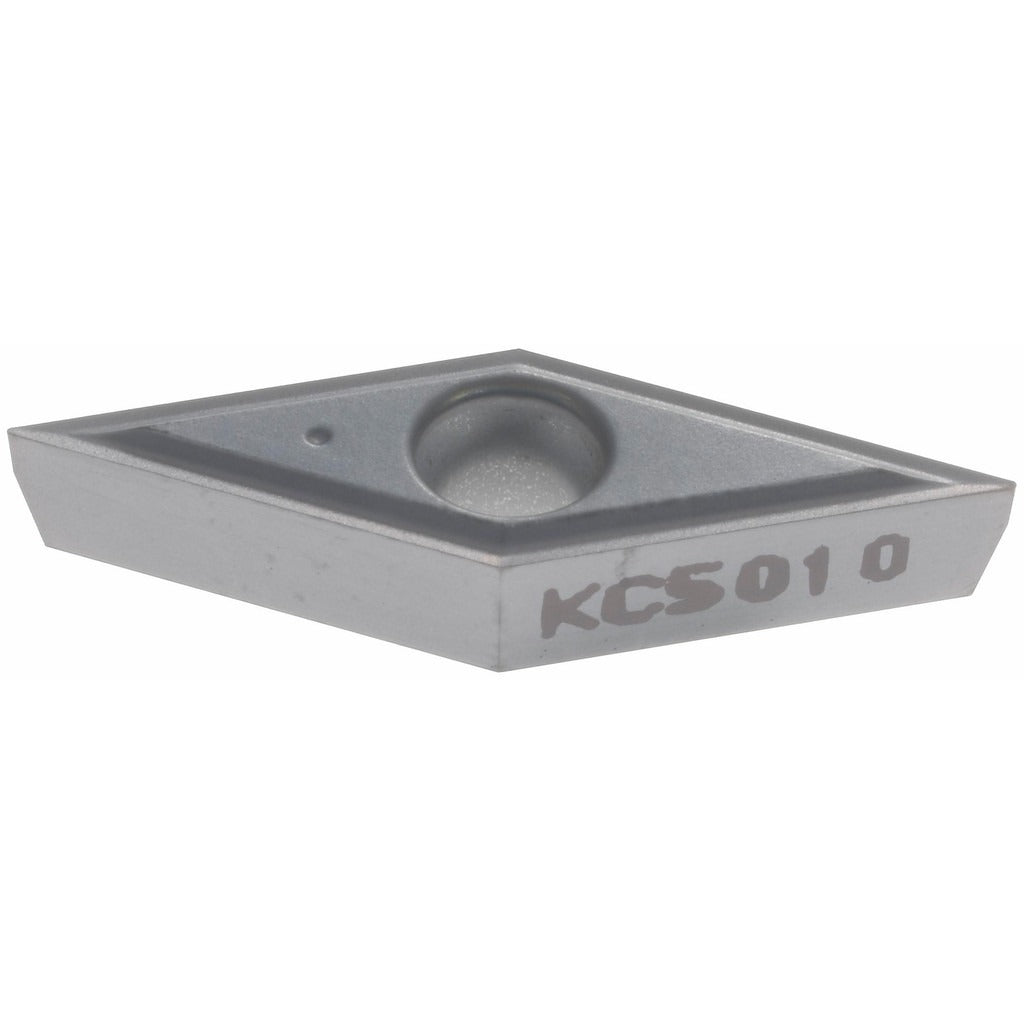

The KENNAMETAL 1713359 is a solid carbide turning insert in the VBGT220LF geometry, coated with TiAlN via a PVD process and carrying the KC5010 manufacturer grade. It features a 35-degree diamond (rhombic) shape with a 0.25-inch inscribed circle, a 0.0039-inch corner radius, and a positive rake and side clearance configuration. The LF chip breaker is optimized for finishing and light machining passes. Two cutting edges are available per insert. This insert is held in place by a screw-on method and is suited for CNC turning, facing, boring, back turning, and back boring operations performed by machinists and tool and die professionals.

The 1713359 is designed for use on steel, stainless steel, superalloys, and titanium as primary workpiece materials, with additional capability on cast iron and aluminum-family materials. Its KC5010 grade delivers high wear resistance with moderate toughness, making it well matched to finishing cuts where surface finish and dimensional control are the priority. The insert conforms to both ANSI (VBGT2202) and ISO (VBGT110301) standards, fitting standard VBGT-style screw-on toolholders used on most CNC lathes and turning centers. Maximum depth of cut is 1.25 mm (0.0492 inches).

Key Features

• KC5010 grade with TiAlN PVD coating for high wear resistance on steel and stainless steel
• 35-degree diamond insert shape (VBGT) with positive rake and positive side clearance for low cutting forces
• LF chip breaker geometry suited for finishing and light machining operations
• Two usable cutting edges per insert
• Screw-on holding method compatible with standard VBGT toolholders
• Conforms to ANSI (VBGT2202) and ISO (VBGT110301) insert standards
• Multi-use application: turning, facing, boring, back turning, and back boring

Compatibility

Designed for use in screw-on VBGT-style toolholders conforming to ANSI and ISO insert seat standards. Compatible workpiece materials include steel (P), stainless steel (M), cast iron (K), aluminum and non-ferrous materials (N), and superalloys and titanium (S).

Installation Notes

Installation is performed by machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the toolholder is secured in the turret before seating or replacing the insert. Use the correct torque driver for the screw-on clamping screw to avoid insert movement or seat damage. Inspect the insert pocket for chips or debris before seating a new insert.
