Kennametal 1544820 Spiral Point Tap 1/4-20 Unc Hss Tin

Product Description

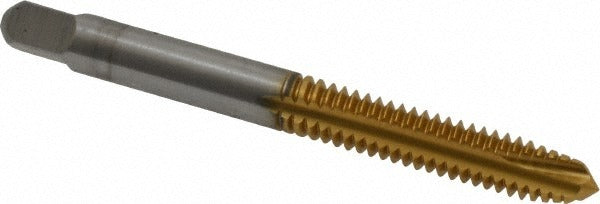

The KENNAMETAL 1544820 is a spiral point tap designed for machine tapping of through holes in a wide range of ferrous materials. Built from high speed steel (HSS) with a titanium nitride (TiN) coating, it offers improved wear resistance and reduced friction compared to uncoated HSS taps. The 1/4-20 UNC thread form, 3-flute configuration, and plug chamfer make it well suited for production environments where chip evacuation forward through the hole is required. It carries an H5 thread limit and a 2B class of fit, meeting standard tolerances for general fastener applications. Right-hand cut only. This tap is used by machinists and maintenance technicians working in manufacturing, fabrication, and repair settings.

This tap is rated for use in cast iron, ductile iron, stainless steel, and steel. The plug chamfer style provides a gradual lead into the cut, distributing cutting load across several threads at the start. It is suited for CNC machining centers, drill presses, and tapping arms where controlled feed rates can be maintained. The TiN finish extends tool life in higher-volume runs and in harder materials such as stainless steel. Coolant-through capability is not available on this tap; flood or brush-applied cutting fluid should be used when tapping stainless or harder steel grades.

Key Features

• 1/4-20 UNC thread form with H5 thread limit and 2B class of fit
• 3-flute spiral point design pushes chips forward, ideal for through-hole tapping
• Plug chamfer distributes cutting load over multiple lead threads
• HSS construction with TiN coating for extended tool life and reduced galling
• Right-hand thread direction; no coolant-through feature
• Rated for cast iron, ductile iron, stainless steel, and carbon or alloy steel

Compatibility

Designed for use in through-hole tapping applications requiring a 1/4-20 UNC, 2B class of fit thread. Suitable for use in cast iron, ductile iron, stainless steel, and steel workpieces as specified by the manufacturer.

Installation Notes

Taps should be installed by qualified machinists or maintenance technicians familiar with speeds, feeds, and proper tap alignment for the material being threaded. Always secure the workpiece and ensure the tap is properly aligned with the pilot hole before engaging the drive. Apply cutting fluid appropriate for the workpiece material, particularly when tapping stainless steel or cast iron, to reduce heat buildup and extend tool life. Replace the tap at the first sign of chipping, oversized threads, or increased torque to avoid workpiece damage.
