Kennametal 1544816 Spiral Point Tap 1/4-20 Unc Hss Tin

Product Description

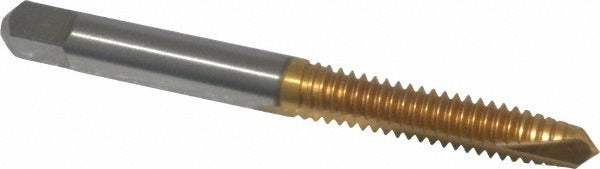

The KENNAMETAL 1544816 is a spiral point plug tap designed for right-hand threading in a range of ferrous materials. Built from high speed steel (HSS) with a titanium nitride (TiN) coating, this tap produces 1/4-20 UNC threads and is configured with 2 flutes in a plug chamfer profile. The spiral point geometry pushes chips forward ahead of the cut, making it well suited for through-hole tapping operations. The H2 thread limit provides a close tolerance fit appropriate for standard UNC fastener applications. Overall length is 2.5 inches with a thread length of 1.0 inch and a shank diameter of 0.255 inches.

This tap is intended for use in through-hole applications where chip evacuation away from the cutting zone is required. Rated material applications include cast iron, ductile iron, stainless steel, and steel. It is appropriate for use in machine tapping setups such as drill presses, CNC machining centers, and tapping arms, as well as controlled hand tapping where torque can be managed. The TiN coating improves surface hardness and lubricity, extending tool life in production runs on abrasive ferrous materials.

Key Features

• 1/4-20 UNC right-hand thread form with H2 thread limit tolerance
• Spiral point geometry advances chips forward for clean through-hole tapping
• High speed steel construction withstands heat and wear in ferrous materials
• TiN coating increases surface hardness and reduces friction during cutting
• Plug chamfer provides gradual thread engagement over several leading threads
• No coolant-through requirement simplifies tooling setup

Compatibility

Designed for through-hole tapping of cast iron, ductile iron, stainless steel, and steel. Suitable for use in machine or hand tapping applications requiring a standard 1/4-20 UNC H2 thread limit.

Installation Notes

This tap should be installed by a machinist or qualified tradesperson familiar with thread cutting operations. Secure the workpiece firmly before tapping and ensure the tap is aligned perpendicular to the hole to prevent tap breakage. Use an appropriate cutting fluid or tapping compound for the material being threaded. Inspect the tap for wear or damage before each use, as a dull or chipped cutting edge increases the risk of breakage in hard materials.
