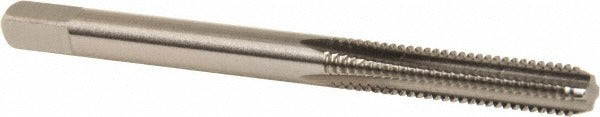

Kennametal 1541498 Hand Tap 8-32 Unc Bottoming Hss

Product Description

The KENNAMETAL 1541498 is a straight-flute hand tap designed for cutting 8-32 UNC internal threads to a bottoming chamfer in a right-hand direction. Built from high-speed steel with a bright, uncoated finish, it is suited for threading operations in cast iron and non-ferrous metals. The tap features four flutes, a thread limit of H3, and a Class 2B fit, making it appropriate for standard-tolerance threaded fastener applications. With an overall length of 2.13 inches and a thread length of 0.75 inches, it is sized for compact workpieces where thread engagement depth must be maximized near the bottom of a blind hole.

This tap is used in machine shops, maintenance environments, and light manufacturing where hand-tapping or low-speed machine tapping of 8-32 UNC threads is required. The bottoming chamfer — typically 1 to 2 threads of lead — allows threading to be carried nearly to the bottom of a blind hole, making it a finishing tap used after a plug tap has started the thread. It is appropriate for cast iron components and non-ferrous metal workpieces such as aluminum, brass, and copper alloys. Machinists, tool and die professionals, and maintenance technicians are the primary users.

Key Features

• Bottoming chamfer for threading to the base of blind holes
• High-speed steel construction for durability across cast iron and non-ferrous metals
• Bright, uncoated finish suitable for use with standard cutting fluids
• H3 thread limit for Class 2B fit tolerance control
• 4-flute straight-flute geometry for chip clearance during hand tapping
• Right-hand thread direction, 8-32 UNC

Compatibility

Designed for cutting 8-32 UNC right-hand internal threads in cast iron and non-ferrous metal workpieces. Part of the KENNAMETAL Series 5305 and 5303 tap families.

Installation Notes

This tap is installed by machinists or maintenance technicians using a standard tap wrench or low-speed tapping head. Before tapping, ensure the workpiece is securely fixtured and that a correctly sized 8-32 tap drill hole has been prepared. Apply appropriate cutting fluid for the workpiece material to reduce heat and extend tap life. For blind holes, use a plug tap first to establish the thread, then follow with this bottoming tap to extend threads toward the hole base.
